Product Details:
|
| Temperature Range: | -70°C To 150°C | Temperature Stability: | ±1.5°C |
|---|---|---|---|
| Customized Support: | OEM | Humidity Range: | 20~98%Rh |
| Brand Name: | GSKA | Voltage: | 380V |
| Power: | Electronic, Electronic | Test Time: | 1~9999 Minutes(arbitrary Setting) |

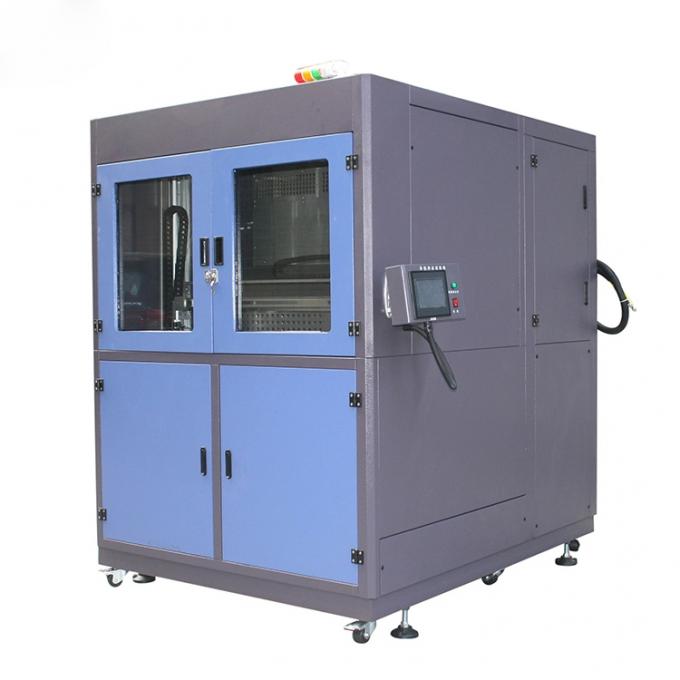

Virtual Climate High Low Temperature Chamber Temperature Range-80℃-150℃
Product Description:
Altitude Temperature test Chamber is used to simulate the high mountain environment for testing vehicles, electronics, components, packaging materials which require air transport.
Altitude Test Chambers combine temperature and altitude environments with optional humidity for simultaneous environmental testing. An Altitude Chamber allows users to control the test chamber temperature while subjecting the product under test to various levels of altitude up to 100,000 feet, with optional extended altitude range to 150,000 feet. This combination of elements allows precise simulation of real-life conditions a product might encounter at various altitude levels.
| Inner chamber volume(v) | 100L | 150L | 252L | 504L | 1000L |
| Outer Diemension W*D*H(cm) | 98*95*160 | 98*105*170 | 108*112*180 | 128*125*200 | 148*155*210 |
| Packing Size | 113*110*175 | 113*120*185 | 123*127*195 | 133*140*215 | 163*160*225 |
| G.W(kg) | 340 | 370 | 430 | 460 | 600 |
| Temperature Range | A:-20℃-150℃ B:-40℃-150℃ C:-60℃-150℃ D:-80℃-150℃ | ||||
| TemperatureFluctuation | ≤ ±0.5℃ (standard) | ||||
| Temperature Evenness | ≤ ±2℃ | ||||
| Temperature Deviation |
≤ 1℃
|
||||
| Accuracy | 0.1℃ (standard) | ||||
| Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
| Temperature Down Speed | 0.7℃~1.2℃/min | ||||
| Time needed for heating |
RT℃~150℃≤30min
|
||||
| Time needed for cooling | RT℃~-40℃≤30min | ||||
| The machine noise | ≤72dB(A) | ||||
| Load on the largest | 100kg,≤20 kg/layer | 150kg,≤26 kg/layer | 260kg,≤30 kg/layer | 260kg,≤40 kg/layer | 300kg,≤60 kg/layer |
| Equipment installed power | ~1.95KW | ~2.35KW | ~2.85KW | ~3.5KW | ~4.35KW |
| Material |
The studio:# SUS304 stainless steel
|
The outer wall:A3 carbon steel plate with plastic spray/ #SUS304
|
|||
| Wind Cycling Way | Centrifugal fan-broadband type forced air ciruculation | ||||
| Refrigeration Way |
Single stage compression refrigeration
|
||||
| Refrigerater |
French Tecumseh
|
||||
| Refrigerats | R404A USA Dupont environment protection refrigerant | ||||
| Condesing Way | Air-cooled or water-cooled | ||||
| Heater | Nickel Chorme Heating Wire Heater | ||||
| Control Instrument | HLS touch screen | ||||
| Design Criteria | GJB150.3 GJB150.4 GB/T2423.22 GB10589-89 GB11158-89 | ||||
| Standard Accessories parts |
Observe window(double-deck cavity toughened glass),PL inner chamber,Wet and dry bull gauze, 3 fues, 1 power line
|
||||
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
