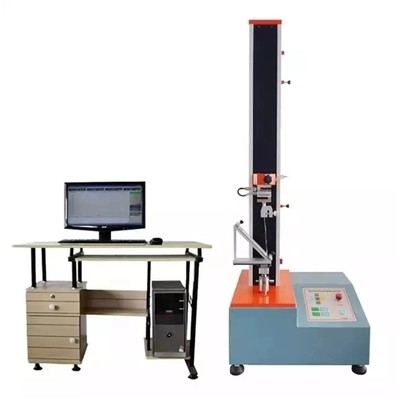

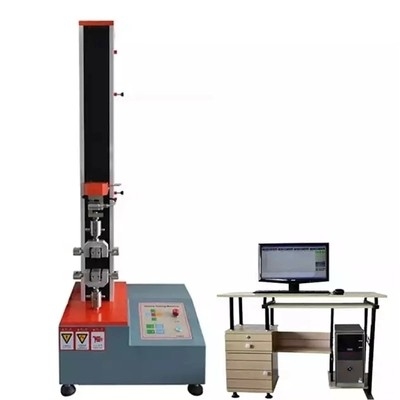

1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer

1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer
1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer

Large Image :  1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSKA-600
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer

Description
Resolution: Max Load 1/±250000 Weight: 70 Kg
Power Supply: AC220V±10%,50Hz Control Method: Computer Control
Motor: Servo Motor Test Speed Range: 50-500mm/min
Load Range: 0.4%~100%F·S Structure: Single Column Double Spaces

1/3/5 KN Single-Column Universal Testing Machine Micro Display Computer



Features:



1. The machine has completely changed the new material testing machine for the whole calculator operation, which was developed from the shortcomings of the conventional material testing machine, which is bulky, complex and complicated.



2. The structure adopts the steel plate and aluminum extruded plate with advanced baking paint, with high precision, low resistance, seamless precision screw and guiding column, which improves the load efficiency and structural rigidity.



3. The control system adopts the motor of the whole digital communication server to ensure that the transmission system is high in efficiency, stable in transmission, low in noise and accurate in speed.



4. Microcomputer system by commercial calculator as the main control machine, cooperate with the company's QCTech testing software, can complete all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;



5. Dedicated measurement and control system is specially designed for microcomputer electronic universal testing machine.It can stretch, compress, bend, shear, tear and peel off test.The data acquisition, preservation, processing and printing test results of PC and interface board are adopted.It can calculate the maximum force, yield force, average stripping force, maximum deformation, yield point, elastic modulus and other parameters;It can perform curvilinear processing, graphical graphical interface, flexible data processing, ms-access database support, making the system more powerful.



Software Technical Parameters:



1. Adopt the Windows work platform, and the parameter setting is handled in the form of dialog box, and the operation is simple;



2. Using a single image operation, no screen switching is required;



3. The software interface has many languages in Chinese and English.



4. Self-regulation test form mode;



5. Test data can be directly called in the main screen;



6. The data comparison of multiple curves can be carried out by means of translation and comparison.



7. There are various measuring units of KGF, LBF, N, KN, KPa and Mpa.



8. Automatic return function;



9. Automatic calibration function, with input direct switching;



10. Function of self-defining test method;



11. Experimental data operation analysis function;



12. Functions of automatic magnification ratio of 1, 2, 5, 10, 20, 50 and 100, in order to achieve the most appropriate size of the graph automatic switching, data acquisition frequency of 6000HZ;



Technical Parameters :



Model GSKA-600
Support Customized Yes
Max capacity 5kg,10kg,25kg,50kg,100kg,250kg,500kg (It is optional.) can be setting
Induction method : Precision load cell (sensor)
Max. Load Capacity : 500kg
Force Resolution/Accuracy: ± 0.5%
Accuracy class : 0.5
Resolution: 1/1,000,000
Test width: 400mm(Standard specifications special specifications can be customized)
Test stroke : Max.700 mm( included the fixture)
Stroke Resolution: 0.01mm
Speed range: 0.001-20inches/min
Reference Machine Dimension: 580*580*1250mm (W*D*H) Support Customized
Power : 1 phase 220V 50/60Hz
Packing Standard Export plywood case
Force system servo drives + Servo motor + precision ball screw drive
Control system Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed
of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly
improved, faster operation, control accuracy higher


Obtain data
The key components are used America's most stable and ultra-precision 24 yuan AD,
sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the
resolution of up to 1,000,000 indexing
Displacement Control: Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm
Safety devices: 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device


Reference standard
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other
standards.
1 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 01 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 11 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 21 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 31 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 41 / 3 / 5KN Single Column Universal Testing Equipment Micro Display Computer 5



Customer Support Services:



Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
