Product Details:
|
| Keyword: | Tensile Strength Testing Machine | Tensile Space: | 500mm |
|---|---|---|---|
| Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
| Brand Name: | GSKA | Test Speed Range: | 50-500mm/min |
| Load Range: | 0.4%～100%F·S | Structure: | Single Column Double Spaces |

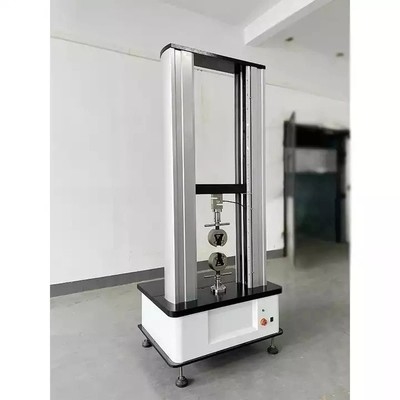

AC220V±10% 50Hz Computer Controlled Universal Testing Machine CE
composition:
Universal material testing machine is composed of measuring system, driving system, control system and computer (computer system type tensile testing machine) structure.
classification:
If the universal testing machine on the market is classified according to its use, it can be classified as a testing machine for the determination of mechanical properties. According to the use of the testing machine can be divided into two categories:
test machine for the determination of mechanical properties:
As well as universal testing machines, the testing machines for measuring mechanical properties include: A-static load testing machines: including tensile testing machines, pressure testing machines, torsion testing machines, composite stress testing machines, creep testing machines, durable strength testing machines, relaxation testing machines, and hardness testers including Brinell, Lowe and Vickers hardness testers. B- dynamic load testing machine: including impact testing machine, fatigue testing machine and the impact of Brinell and Shaw hardness tester.

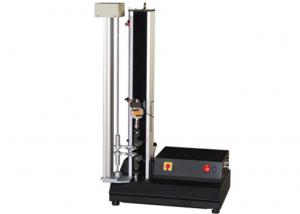

Two Point Extension Tensile Test Machine Description :
Two point extention test machine UTM tensile strength tester is applicable to the pull of the load below 0 ~ 500KG;It can do many testinf item ,like pressure;Bending;Tear;Stripping...Etc., the strength and extension of the specimen The experiment was conducted by the computer directly controlled the servo motor, and the test was conducted directly, and the automatic return to the origin was completed, and the test data of more than 100 kinds could be selected with the powerful software.
Two Point Extension Stretch Test Machine product has the greatest adaptability to international standards such as ASTM, ISO, JIS, AATCC, IWTO, BS, DIN, etc.To meet the precise testing of the mechanical properties of various related industries.
Technical Parameters :
| Product Name | UTM Tensile Strength Tester / Two Point Extension Stretch Test Machine |
| Model | PT-1076B |
| Capacity Option | 1,2,5,10,20,50,100,200,500 kg |
| Units | KG , LB , N , g |
| Load accuracy | below 0.5% |
| Power analysis | 1/100,000 |
| Power magnification | Single segment automatic magnification |
| Stroke | Display |
| Max Stroke | 700mm ,(1000mm, customized) |
| Effective Width | Diameter 140 mm |
| Motor | PANASONIC AC Servo |
| Test Speed | 0 ~ 1000mm/min computer setting |
| Size, Weight, Power | 65 × 50 × 112 cm ; 75kg ; 1P,AC220V. |
| Basic Equipped Part | The universal clamping device of 1, PT-210, 1 set of punctuation, 1 of the signal line, 1 part of the program, 1 operation manual, 1 copy of the product certificate, 1 piece of warranty card and 1 power line of the equipment |
| Equipped to Buy | Other Fixtures, Air Gripper |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Need more info about Precision UTM Tensile Testing Machine Two Point Extension Stretch Test Machine ,please let us know,thank you
