Product Details:
|
| Keyword: | Tensile Strength Testing Machine | Tensile Space: | 500mm |
|---|---|---|---|
| Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
| Brand Name: | GSKA | Test Speed Range: | 50-500mm/min |
| Load Range: | 0.4%～100%F·S | Structure: | Single Column Double Spaces |

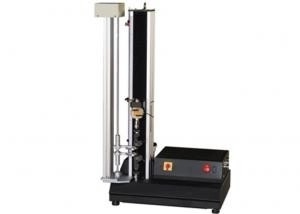

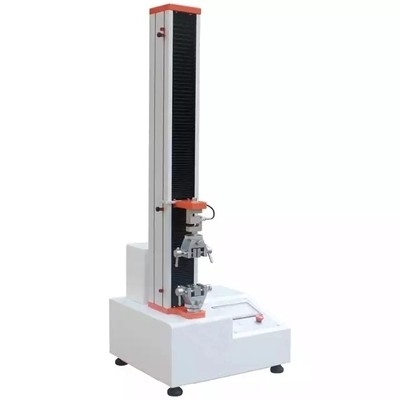

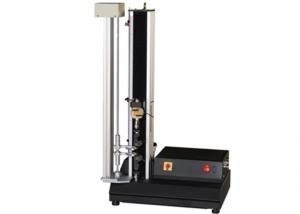

Maximum Stroke 900mm Universal Testing Machine Compression Test OEM
define:
Universal testing machine is also called universal material testing machine, or tension machine, double screw series, control, measurement, operation integration structure, integrating contemporary advanced technology in one, with high precision, wide speed range, compact structure, easy operation, stable performance and other advantages. Electronic universal testing machine meets the requirements of GB/T1040, 1041, 8804, 9341, 9647, ISO7500-1, GB16491, GB/T17200, ISO5893, ASTMD638, 695, 790 and plastic pipe standards. It is suitable for tensile, compression, bending and creep tests of plastic, waterproof materials, textiles, paper products and rubber and other material samples and products. Equipped with a large pressure plate, it can directly carry out flat compression (compression recovery), ring stiffness (resistance to external load), creep ratio, ring tensile strength and other tests.
Universal material testing machine is the modern electronic technology and the combination of the mechanical transmission technology, is give full play to the mechanical and electrical specialty of large precise instrument, for a variety of materials for tensile, compression, bending, peel, performance test, shear, etc, and has a wide measuring range, high precision, fast response, etc. Reliable work, high efficiency, can be real-time display of the test data, record, print.
Use of universal material testing machine:
Universal material testing machine is widely distributed in all walks of life. Universal material testing machines are often used to stretch, bend, compress, and shear materials and to evaluate material properties, applications, development, research, and quality control using experimental data. During the testing process, the material samples are subjected to tensile, bending, compression or traction tests by adjusting the speed levels. Universal material testing machine can be used for product quality control to ensure consistency between batches of product quality.
Adhesives Tape/Pressure Sensitive Tape:
EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
Main Technical Parameter:
| Items | Specification |
| Capacity | 5-200kg imported sensor |
| Unit Switchover | gf, KGF, N , kN, LBf , T |
| Motor | 400w panasonic servo motor |
| Drive | 400w panasonic servo drive |
| Screw | imported ball screw |
| Control mode | panel control (LCD display), can be connected to the computer, Windows mode operation |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Maximum stroke | 900mm (including fixture) |
| Resolution | 1/250,000 |
| Load accuracy | ≤0.5% |
| Overall size | (L*W*H) 520*515*1250mm |
| Weight | Approx.70kg |
| Power supply | 1∮ AC,220V |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Need more info about Multifunction Computer Control Tensile Strength Testing Machine, please contact with us ,thank you
Contact Person: Ms. Kris Zhang
Tel: 0086-0769-85914911
