Product Details:
|
| Capacity: | 2000 Kg (20KN) | Resolution: | 1/100,000 |
|---|---|---|---|
| Sensor: | Load Cell | Max. Stroke: | 650mm (include The Fixture) |
| Deformation Measurement Resolution: | 0.01mm. | Test Speed: | 20-300mm/min (adjusted By The Knob ) |
| Place Of Origin: | Dongguan China | Brand Name: | GSKA |

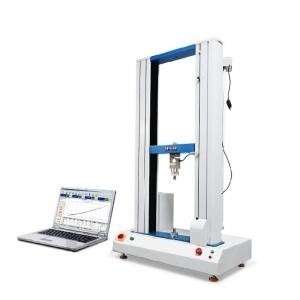

Rubber / Plastic / Fabric Strength Testing Universal Sand Testing Machine CE
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Product Description:
Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

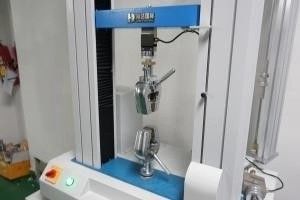

This Tensile Testing Machines is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...
Main Technical Parameter:
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable by PC) |
| Test width | ≤400mm |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Just feel free to inquiry for Double Column Tensile Testing Machines for Rubber / Plastic / Fabric Strength Testing. thank you .
