Product Details:
|
| Product Name: | Tensile Strength Testing Machine | Max. Stroke: | 1000mm (including Fixture) |
|---|---|---|---|
| Deformation Measurement Resolution: | 0.01mm | Power: | Electronic |
| Capacity: | 5T (50KN) | Resolution: | 1/100,000 |
| Motor: | Panasonic Servo Motor | Sensor: | Celtron Load Cell |

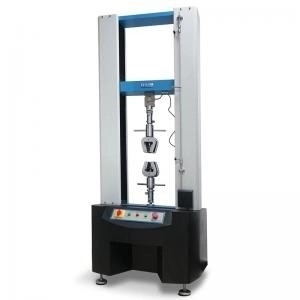

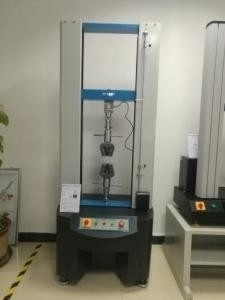

Panasonic Servo Motor Electromechanical Universal Testing Machine OEM
Product Description:
100KN Panasonic Servo Motor Material Tensile Testing Machines is a universal testing machine can do tensile strength test,3 point bending test, bending test,peel strength test for universal materials with different fixtures.this type tensile testing machine be equipped with 100KN panasonic servo motor ,DC variable speed drive system, high-precision mechanical ball screw rod.Precision sensing system and strong maximum test bearing capacity to make test results more accurate, easier to operate.
Tensile Testing Machines overview:
1T Panasonic Servo Motor Material Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, belt,steel products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
1T Panasonic Servo Motor Material Tensile Testing Machines is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Main Technical Parameter:
| Item | Description |
| Max. Force | 5T (50KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1000mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.5% |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Waiting for your inquiry about 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor, thank you
