Product Details:
|
| Capacity: | 50,100, 200kg(optional) | Resolution: | 1/250, 000 |
|---|---|---|---|
| Maximum Trip: | 1400mm (excluding Fixture) | Test Speed: | (0.1-500)mm/min (optional) |
| Units: | Gf, Kgf, N, LBf, W, KN, T | Deformation Measurement Resolution: | 0.01mm |
| Power: | Electronic | Type: | Tensile Tester |
1400mm Including Fixture Electronic Tensile Testing Machines OEM
Application:
1.Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
2.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3.Deformation under defined load: Test deformation under defined load of tested sample
4.Load under defined deformation: Test load under defined deformation of tested sample
5.Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Main Technical Parameter:
| Item | Description |
| Frame capacity | 500kg |
| Load cell brand | China brand, 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 1% F.S |
| Control system | LCD with build-in printer /PC with windows 7 system |
| Motor | Adjustable-speed motor with reduction box, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 0.1~500mm/min (adjustable by rotary knob) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |

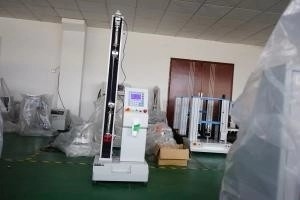

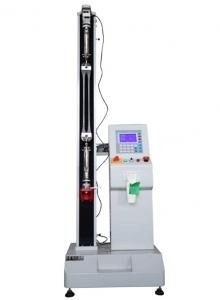

Detail Pictures:
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Hope can hear from you soon about this Electronic Tensile Testing Machines / Compressive Tensile Strength Tester QB/T 1053,thank you
