Product Details:
|
| Product Name: | Electronic Tensile Testing Machines | Units: | Gf, Kgf, N, LBf, W, KN, T |
|---|---|---|---|
| Deformation Measurement Resolution: | 0.01mm. | Power: | Electronic |
| Capacity: | 50,100, 200kg(optional) | Resolution: | 1/250, 000 |
| Maximum Trip: | 1400mm (excluding Fixture) | Test Speed: | 0.1-500mm/min (optional) |

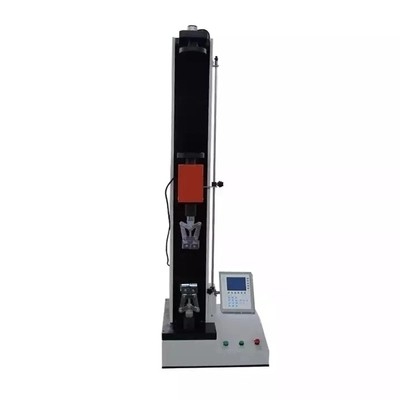

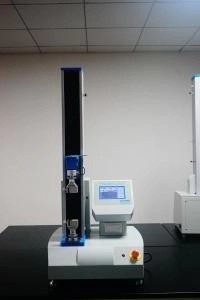

Digital Rubber Tensile Testing Machine Stroke 1000mm(Including Fixture)
Applicable Industries:
The tensile testing equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.
Description:
Lab Tensile Universal Equipment/Rubber Tensile Tester/Tensile Extensometer: for tensile, bending, peeling, compressing tests of metallic and non-metallic materials, such as rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry.
| Items | Lab Tensile Universal Equipment |
| Capacity | 2. 5. 10. 20. 50. 100. 200. 500. 1000kg |
| Unit Switchover | Ton, KG, N, LB |
| Display Device | LCD or PC |
| Resolution | 1/300,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1000mm (including fixture) |
| Test Speed | 0.01-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ or customized |
| Weight | Approx.500kg / Tensile Testing Machine |
| Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |
Universal Testing Machine Software (more than the following)
1.This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.
2.Based on Windows, simple operation and easy to learn.
3.Languages switch between Simplified Chinese, traditional Chinese and English.
4.Ten user accounts and passwords can be created.
5.It has the protection function of overloading: overloading value can be set by user.
6.The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.
7.Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.
8.Force value dual-correction system: auto set and zero, auto identification and import of correction data.
9.It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.
10.Compare among the test curves in the same group though piling them up.
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
Hope can hear from your inquiry soon for Digital Rubber Tensile Testing Machine , High Precise UTM Tensile Testing Machine, we can support our best price with quality service for you , thank you.
