Product Details:
|
| Test Speed: | 5~20 Times /min | Power Supply: | AC220V 50Hz 5A Or Specified By User |
|---|---|---|---|
| Drop Width: | 350mm | Brand: | GSKA |
| Keyword: | Drop Weight Impact Testing Machine | Drop Height: | 500mm Or 1000mm |
| Customized Support: | OEM | Power: | Electronic |

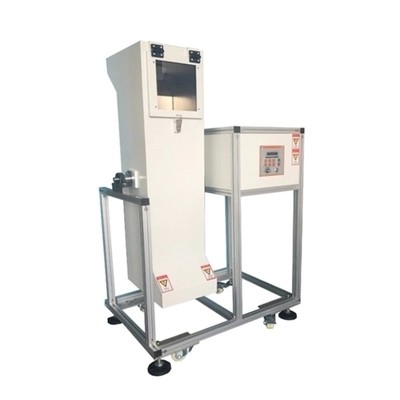

5-20 times/min Drop Weight Impact Testing Machine Explosion proof
The characteristics of:
The machine can make free drop test on the surface, Angle and edge of the package. It is equipped with digital height display instrument and adopts decoding device to track the height, so as to accurately give the product's drop height, and the error with the preset drop height is not more than 2% or 10mm. This machine adopts single arm double column structure, with electric reset, electric drop and electric lifting device: easy to use; Unique hydraulic buffer device greatly improves the service life, stability and safety of the machine single arm setting, can be conveniently placed products, drop Angle impact surface and floor plane Angle error is less than or equal to 5.
standard:
Drop testing machine conforms to GB4857.5 "vertical impact drop test method" test standard
Adopt international standard 150 2248-1985 "Packaging - Vertical impact and drop test for complete and Full transport Packages"
Reference: GB/T 4857.1 Labeling method for various parts of packaging and transportation packages
GB/T4857.2 Packaging and transportation packaging temperature and humidity regulation treatment
GB/T 4857.17 General principles of preparation of performance test outline for packaging and transportation packages
GB 4857.18 Quantitative data for preparation of performance test program for packaging and transportation packages
Application:
This machine is aimed at assessing the effect of unintentional drop of the product by user in actual use on the product performance, which is applicable to the original-gesture drop test of mobile phone, tablet, e-reader, CD, MP3, PDA, telephone, e-dictionary, and other consuming electronic products.
It is used for continuous rolling random drop test inside the 0.5m or 1m
height barrels for electronic products or the parts like the connectors, plugs ETC.
Specification:
| Model | Mobile Phone Testing Equipment | |
| Test amount | 2set or 4set | |
| Drop width | 350mm | |
| Drop height | 500mmor 1000mm | |
| Test speed | 5~20 times /min | |
| Test cycle | 1~999,999times (can set) | |
| Dimension (WxDxH) | 1300x1200x1500mm | 1250x1500x1680mm |
| Weight | 165kg | 250kg |
| Power Supply | AC220V 50Hz 5A or specified by user | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
