Product Details:
|
| Transmit Approach: | Electric Transmission | The Test Mode: | Face, Edge, Corner |
|---|---|---|---|
| Customized Support: | OEM | Power: | Electronic |
| Application: | Packaging | Drop Height: | 300 ~ 1500mm Adjustable |
| Brand: | GSKA | Drop Plane Error: | ≤ 5 Degrees |

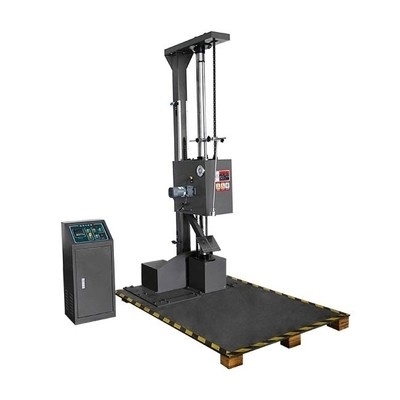

Digital Display Can Be Customized Weight Impact Testing Machine OEM
Products description:
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And the machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces, corners, and edges), etc. can be performed efficiently with a high accuracy.
Matters needing attention:
1. After each test, the drop arm must be dropped, so as not to pull the spring of the drop arm that has been reset for a long time
Deformation, affect the test effect, each time before the drop please first complex position motor stop rotation can be pressed
Down keys;
2. After the new machine is installed in the factory, appropriate low concentration oil must be added to the sliding rod. It is forbidden to add oil
Anti-rust oil or high concentration oil and a backlog of corrosive oil).
3. If the oiling time is long and there is too much dust, please lower the machine to the lower part and wipe the previous machine
Oil, heavy machine oiling;
5. The lifting shaft and chain of the testing machine need regular lubricating oil.
6. The oil of the gear reducer should be changed every six months.
7. All power supplies should be cut off when not working to ensure the cleaning of the lifting shaft.
8. Non-operators shall not operate the machine at will
Standard Specifications:
| Item | Description |
| Drop height | 400-1500mm (can be customized) |
| Display method | Digital display |
| Max. weight of sample | 60kg (can be customized) |
| Max. size of sample | (L*W*H) 800*800*800mm |
| Drop panel area | 150*180*8mm (material is Solid steel plate) |
| Control box dimension | (L*W*H) 350*350*1100mm |
| Deviation of drop horizon | Less than 1° |
| Machine size | (L*W*H)1400*1200*2200mm |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
