Product Details:
|
| Maximum Impact Height: | 2m ± 5mm | Power Supply Voltage: | Single Phase, 220V ± 10% |
|---|---|---|---|
| Brand: | GSKA | Model Number: | Drop Weight Impact Testing Machine |
| Customized Support: | OEM, ODM | Power: | Electronic |
| Place Of Origin: | Dongguan China | Certification: | CE SGS ROHS UL CE |

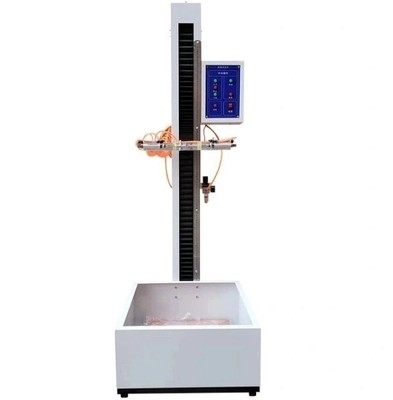

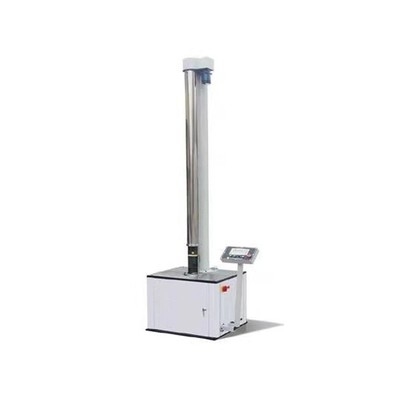

ODM 220V Drop Weight Impact Testing Machine Rustproof Automatic
use:
Usage This machine is not only widely used for measuring the impact toughness of plastic pipes and fittings under external load, but also for measuring the impact toughness of plastic plates and profiles under external load. It is an ideal testing instrument for quality testing in building materials industry, production units and chemical building materials colleges and universities.
Precautions for Operation:
● This equipment is a test equipment.
Please do not use this equipment for purposes other than specified tests and materials.
● Improve the installation environment.
Please leave it at room temperature.
Places with low humidity. (no condensation below 80%)
A place with little dust and dust.
● Please install test materials as required.
Install test materials as required, otherwise unexpected failures may occur.
● Switch off the power supply when wiring and maintaining the cable.
In order to prevent accidents and electric shock caused by losing control of the machine during operation, please be sure to turn off the power before operation.
Product features:
1. With manual and automatic working modes, the operation is convenient and simple;
2. Single chip microcomputer control, with the functions of automatic hammer grasping, automatic hammer lifting, automatic height alignment
and real-time height display, the whole test process is fully automatic control;
3. Automatic zero line adjustment of sample;
4. It has a secondary impact prevention device to make the test results more accurate;
5. Automatic protection and automatic prompt improve the safety and reliability of the test;
6. The lower space can be electrically adjusted to improve the accuracy of sample positioning, effectively reduce the labor intensity of operators and improve labor efficiency.
Standard Specifications:
| Item | Description |
| Drop height | 400-1500mm (can be customized) |
| Display method | Digital display |
| Max. weight of sample | 60kg (can be customized) |
| Max. size of sample | (L*W*H) 800*800*800mm |
| Drop panel area | 150*180*8mm (material is Solid steel plate) |
| Control box dimension | (L*W*H) 350*350*1100mm |
| Deviation of drop horizon | Less than 1° |
| Machine size | (L*W*H)1400*1200*2200mm |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
