Product Details:
|
Keyword: | Drop Weight Impact Testing Machine | The Test Mode: | Face, Edge, Corner |
---|---|---|---|
Customized Support: | OEM | Power: | Electronic |
Drop Height: | 300 ~ 1500mm Adjustable | Brand: | GSKA |
Drop Plane Error: | ≤ 5 Degrees | Place Of Origin: | Dongguan China |

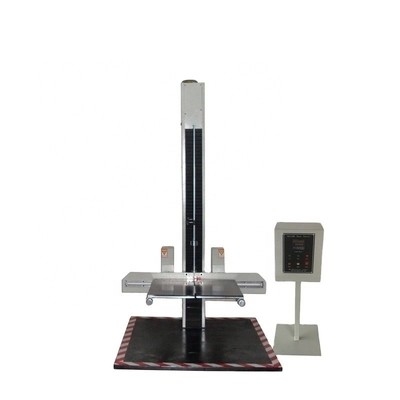

1.75KW Fireproof Drop Weight Impact Testing Machine Anticorrosive
Features:
1. single wing drop tester to do free drop test of the package surface, angle, edge, with digital height indicator and height tracking decoder, which can accurately give the product drop height, and the pre-set drop height error of less than 2%, or 10 mm.
2. single wing drop test machine using a single-arm and double column structure, with electric reset, electronically controlled drop and electric lift device, easy to use. Unique hydraulic buffering device greatly improve the life of the machine, the stability and safety of single-arm set can be easily placed on the product, the drop angle impact surface floor plane angle error is less than 5 degrees.
structure:
The main column is made of special high quality steel and processed by external grinding. The appearance is chrome-plated, durable and never rusts
Taiwan ST special custom chain
Truly complete the face, edge, Angle drop test
Electric reset, electric drop and electric lifting device, easy to use
Ensure free separation of cargo carrier and packaging specimen, realize free drop of packaging specimen, small impact vibration, stable and reliable
Equipped with digital height display instrument and using decoder for height tracking, the product falling height can be accurately given
The deviation from the preset drop height shall not exceed 2% or 10mm
Technical parameters:
Drop height | 300 ~ 1500mm adjustable |
The test mode | face, edge, corner |
Test load | 0 ~ 100kg |
Maximum specimen size | 1000x800x1000mm |
Drop panel size | 1700X1200X20MM |
Supporting arm dimensions | 240x290x8mm |
Motor power | 1.75KW |
Drop error | /-10MM |
Drop plane error | ≤ 5 degrees |
Power | AC380V, 50Hz |
Dimensions | 1700X1200X2515MM |
Weight | 600kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
