Product Details:
|
| Place Of Origin: | Dongguan China | Transmit Approach: | Motor Driven Ball Screw |
|---|---|---|---|
| Drop Height: | 0~1500mm | Weight: | 1000-2000Kg |
| LBrand Name: | GSKA | Impact Capacity: | 20gf, 30gf, 50gf, 100gf (or Specified) |
| Drop Platform Area: | 1000mmX1000mm | Load Way: | Electronic Load |

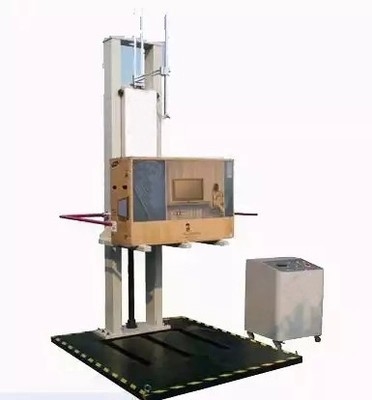

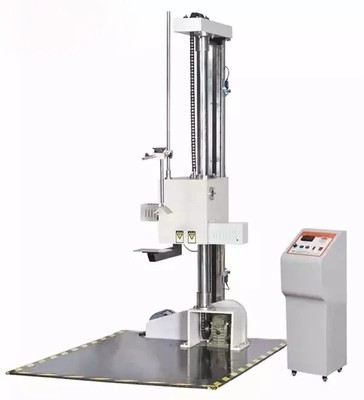

Power Supply 1.85KWA Falling Weight Impact Tester For Electronic Products
| Model | GSKA-220A |
| Drop Height | 300~1500mm Adjustable |
| Machine Dimensions | About 1700*1200*2315mm (L*W*H) |
| Display | LED digital screen |
| Max. Specimen Weight | 80KG |
| Thickness of Ground Plate | 10mm (Solid iron plate) |
| Size of Ground Plate | 1700*1200mm |
| Max Size of Specimen | 800*800*1000mm |
| Size of Arm supporter | 160*250*10mm |
| Deviation of Drop Height | ±10mm |
| Test Method | Face, edge and angle drop test |
| Transmission | Electronic |
| Horizontal Deviation of Impact Plate | ≤1° |
| The Deviation of Horizontal Angle in Falling | ≤1° |
| Voltage | AC 380V, 50Hz |
| Power | 1.85KWA |
| Net Wight | 300KG |
| **Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92 | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
