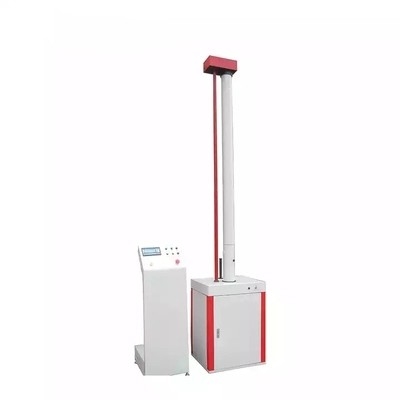

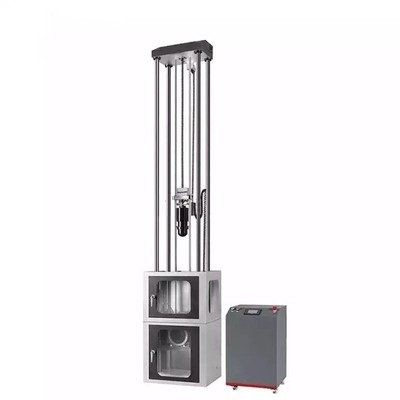

Electronic Products Packaging Drop Test Machine Power Supply 220V 60 / 50Hz

Large Image : Electronic Products Packaging Drop Test Machine Power Supply 220V 60 / 50Hz

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	Drop Weight Impact Testing Machine

Payment & Shipping Terms:

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-20working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

Electronic Products Packaging Drop Test Machine Power Supply 220V 60 / 50Hz

Description

Place Of Origin:	Dongguan China	Control Mode:	Touch Screen Or PC Control
Drop Height:	0~1500mm	Weight:	1000-2000Kg
LBrand Name:	GSKA	Power Supply:	AC 1 Phase 220V 60/50Hz
Drop Platform Area:	1000mmX1000mm	MOQ:	1 Set
High Light:	Packaging Drop Test Machine 220V , 50Hz Packaging Drop Test Machine

Electronic Products Packaging Drop Test Machine Power Supply 220V 60/50Hz

Software operation characteristics:

Movement control: The upper and lower height can be automatically controlled by computer.

Positioning device: The falling height can be automatically controlled by computer.

Lifting device: computer control electromagnet and drop hammer lifting.

Capture device: electromagnet automatically capture, to prevent the sample from being secondary impact.

Buffer device: The device is equipped with a buffer device to prevent damage to the drop hammer impact surface.

Data editing: After the test, the impact damage quality and the corresponding data can be automatically calculated and displayed by the computer.

Curve drawing: The test results of all samples can be automatically marked on the table after the end of the test, which is intuitive and clear.

Report editing: Test data and marking forms can be automatically edited into reports and printed.

Product Paramenters:

Model	GSKA-220A
Drop Height	300~1500mm Adjustable
Machine Dimensions	About 170012002315mm (LWH)
Display	LED digital screen
Max. Specimen Weight	80KG
Thickness of Ground Plate	10mm (Solid iron plate)
Size of Ground Plate	1700*1200mm
Max Size of Specimen	8008001000mm
Size of Arm supporter	16025010mm
Deviation of Drop Height	±10mm
Test Method	Face, edge and angle drop test
Transmission	Electronic
Horizontal Deviation of Impact Plate	≤1°
The Deviation of Horizontal Angle in Falling	≤1°
Voltage	AC 380V, 50Hz
Power	1.85KWA
Net Wight	300KG
**Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92

Electronic Products Packaging Drop Test Machine Power Supply 220V 60 / 50Hz 0

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair

FAQ:

1. How about your warranty?

Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

2. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

3. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

4. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
