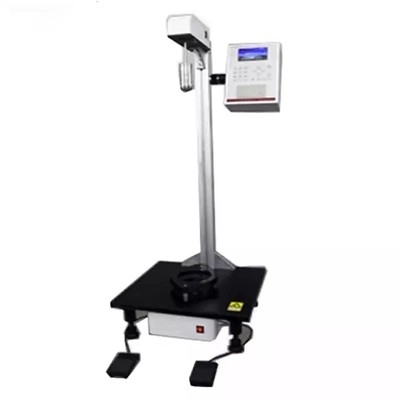

Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display

Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display
Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display

Large Image :  Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Drop Weight Impact Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display

Description
Place Of Origin: Dongguan China Drop Weight Min: 30g±0.5%
Drop Height: 0~1500mm Drop Weight Max: 2000g±0.5%
LBrand Name: GSKA Air Pressure: 0.4-0.5Mpa
Specimen Dimension: >150mmx150mm MOQ: 1 Set
High Light:

1.85KWA Charpy Impact Test Machine

,

220V Charpy Impact Test Machine

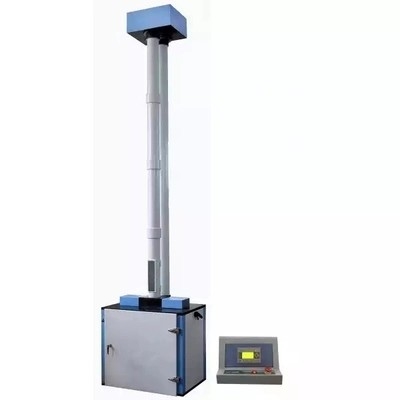

Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display


Method of use:

1. According to the test requirements, determine the weight and impact height of the hammer body, and make good samples for reserve.

2. Determine the weight of the hammer.

3. Put the hammer rod on from the sliding sleeve under the hammer seat, put the selected weight on the hammer rod, and tighten the nut.

4. Turn on the power and enter the working state.

5 press the "slow rise" key, will hammer up from the bottom, press the "stop" key, in order to facilitate the installation of samples.

6. Open the laboratory door and place the sample on the V-shaped iron.

7. Observe the left photoelectric switch red indicator state: off indicates that the sample is too high to pass the light, on indicates that the sample is low, the light can pass, adjust the lifting handwheel, so that the sample on the bus and the center of the photocell on the same level.

8 to determine the height of zero: with the "slow down", "slow up" key, the hammer just contact with the sample, according to the height of the display table zero point "Xiao zero".

9. Close the protective net and door, press the "quick rise" button, the ruler indicates the lifting height, and press the "stop" button when it reaches the predetermined height.

10 impact: first press the "pre-drop hammer" key, so that the key on the indicator light, and then press the "drop hammer" key, hammer body falling, impact sample. Note: PRESS the "PRE-DROP HAMMER" key: the key stop indicator light is not bright, indicating that the sample is too high, and the height of the sample needs to be adjusted. "Pre-drop hammer" key: press this key, into the pre-drop hammer state (after the sample is installed), press the "drop hammer" key, hammer body immediately drop, press other keys to remove the drop hammer state.

11. When the hammer impact the sample, the sample is not broken so that the hammer rebound, the photoelectric signal control hammer mechanism will quickly clip (connect) the rebound hammer, to prevent the purpose of secondary impact.

12. Press the "quick descent" key, insert the bolt on the hammer seat into the electromagnetic seat, and press down the micro switch to stop the descent.

Product Paramenters:

Model GSKA-220A
Drop Height 300~1500mm Adjustable
Machine Dimensions About 1700*1200*2315mm (L*W*H)
Display LED digital screen
Max. Specimen Weight 80KG
Thickness of Ground Plate 10mm (Solid iron plate)
Size of Ground Plate 1700*1200mm
Max Size of Specimen 800*800*1000mm
Size of Arm supporter 160*250*10mm
Deviation of Drop Height ±10mm
Test Method Face, edge and angle drop test
Transmission Electronic
Horizontal Deviation of Impact Plate ≤1°
The Deviation of Horizontal Angle in Falling ≤1°
Voltage AC 380V, 50Hz
Power 1.85KWA
Net Wight 300KG
**Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92

Falling Film Resistance Charpy Impact Test Machine 220V With Digital Display 0



Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair



FAQ:

1. How about your warranty?


Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.


2. How about the packing for machine, is it safely protected during transportation?


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


3. What is the order process?


Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.


4. How to install and use the product?


The product is shipped with an operating instructions and video of English version.
