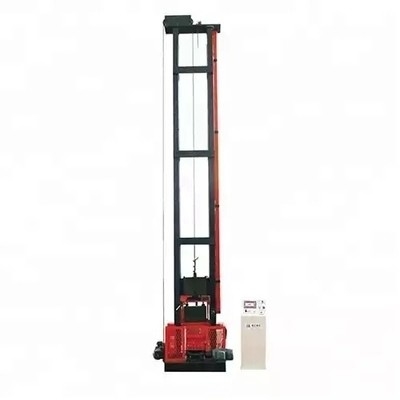

High Stability Free Fall Drop Tester , Drop Weight Impact Testing Machine 380V

High Stability Free Fall Drop Tester Heavy Load Drop Impact Test Machine 380V

describe:

Drop hammer impact testing machine an impact test process is as follows: install the test sample, set the impact height and other test parameters, start the testing machine, lift beam falling, lead screw inversion, drop hammer rise, drop hammer to the predetermined position, release the drop hammer, drop hammer impact sample, automatic capture drop hammer, check the test sample. The motor drives the lead screw to rotate through the synchronous belt wheel set. Because the lead screw nut is connected to the lift hammer beam, it drives the lift hammer beam to move up and down, and the beam then rises with the drop hammer. According to the set pulse step and screw pitch, the number of rotating pulses is measured by the photoelectric encoder, and the hammer can be lifted to the set height. The drop hammer is released, and the hammer falls freely to impact the sample. When THE impact head HITS the SAMPLE, IT SPRINGS with the whole HAMMER joint, AND THEN the trap sleeve enters the trap frame until the guide sleeve is stuck and the hammer falls on the trap frame.

Application:

This testing machine conforms to ASTM F519 requirements, mainly used for electroplating/coating treatment and equipment environment, room temperature duration test of mechanical hydrogen embrittlement evaluation. It is often used in metallurgical departments, scientific research institutes, quality inspection departments, aerospace, automobile manufacturing, machinery manufacturing, petrochemical industry, building materials, colleges and universities and related industrial and mining enterprises to test material properties.
