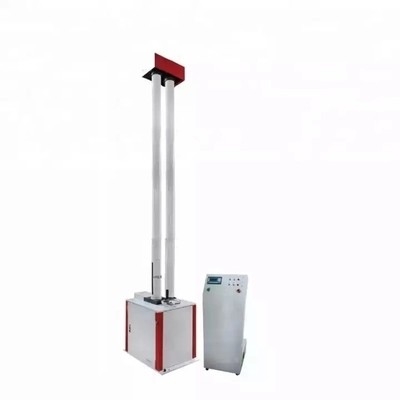

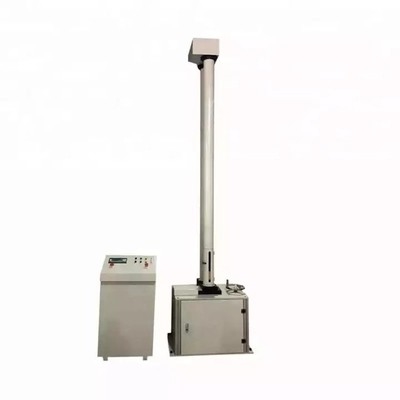

SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm

Certification
China Dongguan FREETO Medical Technology Co., LTD certification
China Dongguan FREETO Medical Technology Co., LTD certification
Customer Reviews
The box structure is beautiful and generous, and the use of no reaction handle, simple operation, temperature and humidity stable operation, high accuracy. Explain the operation method of the equipment in detail, very good

—— Masood Rehman

I must confess you have a brilliant customer relations skills and i am learning from you. I tell you if you want to see how beautiful Zambia in Africa

—— Dr Claude VILLETTE -----France

Thanks always giving me good products. thanks for your effort you done before. your firend from Egypt.

—— Waleed-Egypt

I'm Online Chat Now

SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm

SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm
SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm

Large Image :  SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Drop Weight Impact Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm

Description
Place Of Origin: Dongguan China Working Environment Temperature: 10 ℃ ~ 35 ℃
Height Positioning Error: ± 2mm Height Location Error: 2mm, 100% Prevent From Second Impact.
LBrand Name: GSKA Maximum Impact Height: 2000mm
Hammer Radius: D25, D90 MOQ: 1 Set
High Light:

SGS Impact Drop Tower

,

2000mm Impact Drop Tower

SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm


describe:

For plastic pipe material in the process of impact resistance performance test efficiency is low, the disadvantage of intelligent test result judgment is not high, using computer software, such as automatic control technology to design a kind of plastic pipe impact resistance performance drop hammer test machine control system design, through the way of collaborative control PC and lower machine realizes the drop hammer test machine automatic control, using the computer software realization and test process According to the effective management, complete the intelligent determination of the impact resistance performance of plastic tubing. After concrete application, the system can effectively improve the automation level of plastic pipe impact test and improve the test efficiency.


Product features:

1. With manual and automatic working modes, the operation is convenient and simple;

2. Single chip microcomputer control, with the functions of automatic hammer grasping, automatic hammer lifting, automatic height alignment and real-time height display, the whole test process is fully automatic control;

3. Automatic zero line adjustment of sample;

4. It has a secondary impact prevention device to make the test results more accurate;

5. Automatic protection and automatic prompt improve the safety and reliability of the test;

6. The lower space can be electrically adjusted to improve the accuracy of sample positioning, effectively reduce the labor intensity of operators and improve labor efficiency.


Specifications:



Max. Height(mm)2000
Max. SizeDIA400
Hammer mass0.250~10.00Kg,0.125Kg/per increase
Specimen diameter10~400 mm, 10~630 mm (outer diameter)
orking temperature10~35℃
Hammer radiusd25, d90
Impact height0-2000 mm
Height location error2mm, 100% prevent from second impact.
PowerAC 380V±10% 5A;2KW


SGS Maximum Height 2000mm Impact Drop Tower Height Error ± 2mm 0


Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair



FAQ:

1. How about your warranty?


Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

2. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

3. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

4. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
