Product Details:
|
| Place Of Origin: | Dongguan China | Drive Mode: | Motor Drive |
|---|---|---|---|
| Height Positioning Error: | ± 2mm | Height Location Error: | 2mm, 100% Prevent From Second Impact. |
| LBrand Name: | GSKA | Impact Plate Materialpact Height: | 45# Steel, Solid Steel Plate |
| Hammer Radius: | D25, D90 | MOQ: | 1 Set |
| High Light: | Impact Test Machine AC380v,Izod Impact Test Machine |
||

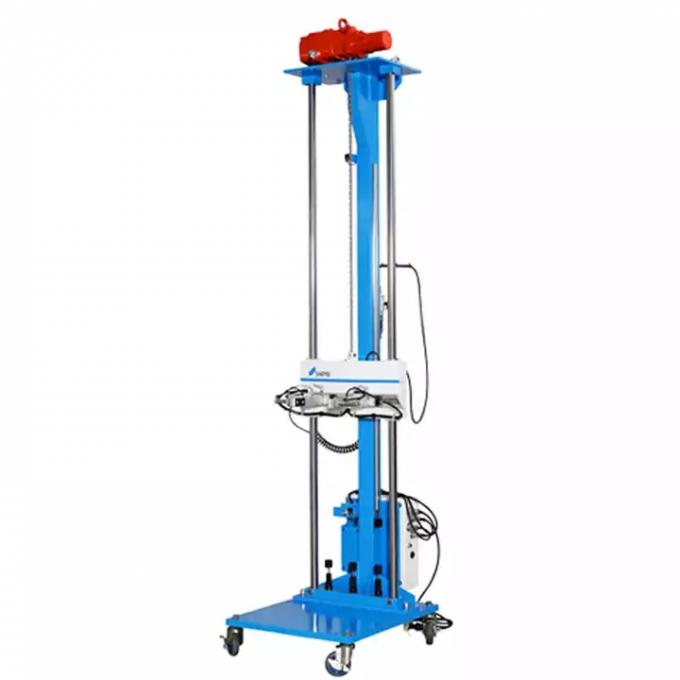

High Accuracy Sensor Izod Impact Test For Plastics Ac380v±10% 50hz
The main structure and principle of the testing machine:
1, the testing machine is mainly composed of workbench, prevent secondary impact mechanism, supporting pipe, conduit, hammer body, V-body and automatic drop hammer mechanism, reducer, electric control box and machine base.
2, the working principle of the testing machine:
Intraductal in testing machine to install a movable fixture, jig into the electromagnet, electromagnet fixed in the chain end, through the motor and reducer, driven fixture hammer for ascension, hammer body automatically rise to the required height, press drop switch, electromagnet action, opening and closing fixture to open, make the hammer body in intraductal free fall, impact on the specimen, the purpose of the test. The impact energy can be calculated according to the hammer mass and impact height. When the hammer impact the sample, the sample is not broken so that the hammer rebound, the photoelectric signal control hammer mechanism will quickly clamp (connect) the rebound hammer, to prevent the purpose of secondary impact. V type iron sample is installed under the table, two screws are installed on both sides, through the rotation of the handwheel to drive the screw rotation V type iron lift, to determine the size of the sample diameter.
| Max. Height(mm) | 2000 |
| Max. Size | DIA400 |
| Hammer mass | 0.250~10.00Kg,0.125Kg/per increase |
| Specimen diameter | 10~400 mm, 10~630 mm (outer diameter) |
| orking temperature | 10~35℃ |
| Hammer radius | d25, d90 |
| Impact height | 0-2000 mm |
| Height location error | 2mm, 100% prevent from second impact. |
| Power | AC 380V±10% 5A;2KW |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
