Product Details:
|
| Place Of Origin: | Dongguan China | Application: | Packaging |
|---|---|---|---|
| Height Positioning Error: | ± 2mm | Height Location Error: | 2mm, 100% Prevent From Second Impact. |
| LBrand Name: | GSKA | Impact Capacity: | 20gf, 30gf, 50gf, 100gf (or Specified) |
| Hammer Radius: | D25, D90 | MOQ: | 1 Set |
| High Light: | AC380v Impact Testing Machine,Sensorball Impact Testing Machine |
||

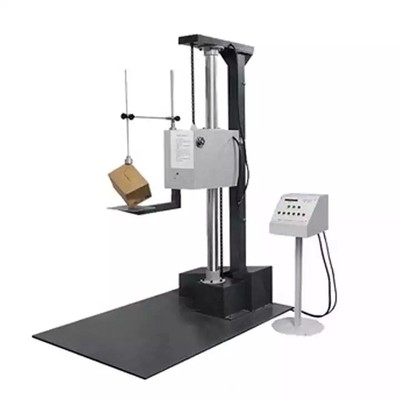

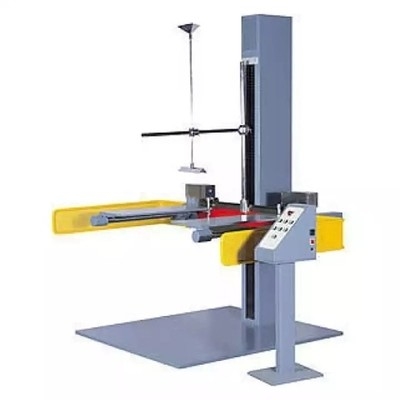

High Accuracy Sensorball Drop Weight Impact Testing Machine AC380v 50hz
product description:
Impact test is mainly a drop hammer, pendulum two forms, drop hammer and according to the shape of the hammer is divided into falling dart, falling ball and other impact testing machine, the basic principle is the same, is to put a certain quality of the object, hanging to a certain height, falling impact sample, and then observe the sample surface after impact damage.
Pendulum impact testing machine is a shaft pendulum (similar to a pendulum), hammer impact down from a certain height, after the impulse sample, the pendulum raised a certain height, read the residual impact energy on the dial or electronic display. This test method is used to measure the impact toughness of the sample
operating principle:
Impact testing machine is impacted by the sample at the moment of impact, divided into manual pendulum type impact testing machine, semi-automatic impact testing machine, non-metallic impact testing machine, digital semi-automatic impact testing machine, microcomputer control impact testing machine.
Digital display automatic impact testing machine through the high speed load measurement sensor to generate signal, after the high speed amplifier amplification, by A/D quickly converted into digital signal to the computer for data processing, at the same time through the detection of angular displacement signal to the computer for data processing, high accuracy. Add the supervising system of angular displacement and force detection sensor and amplifier, high-speed sampling by computer data processing, display and J - N - T T curve, data save, data report printing, etc., can the instantaneous measuring and recording materials in the process of impact characteristic curve, and by changing the pendulum and sample base, which can realize simply supported beam and cantilever beam two forms of test.
| Max. Height(mm) | 2000 |
| Max. Size | DIA400 |
| Hammer mass | 0.250~10.00Kg,0.125Kg/per increase |
| Specimen diameter | 10~400 mm, 10~630 mm (outer diameter) |
| orking temperature | 10~35℃ |
| Hammer radius | d25, d90 |
| Impact height | 0-2000 mm |
| Height location error | 2mm, 100% prevent from second impact. |
| Power | AC 380V±10% 5A;2KW |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
