Product Details:
|
| Place Of Origin: | Dongguan China | Impact Height: | 300～1000mm |
|---|---|---|---|
| Height Positioning Error: | ± 2mm | Height Location Error: | 2mm, 100% Prevent From Second Impact. |
| LBrand Name: | GSKA | Impact Capacity: | 20gf, 30gf, 50gf, 100gf (or Specified) |
| Hammer Radius: | D25, D90 | MOQ: | 1 Set |
| High Light: | Sensorball Impact Test Equipment,50hz Impact Test Equipment |
||
AC380v ± 10% 50hz Sensorball Impact Test Equipment High Accuracy
Working principle and characteristics:

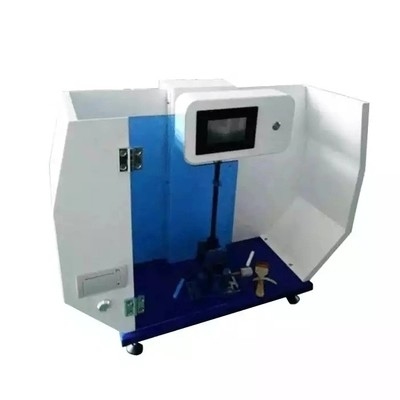

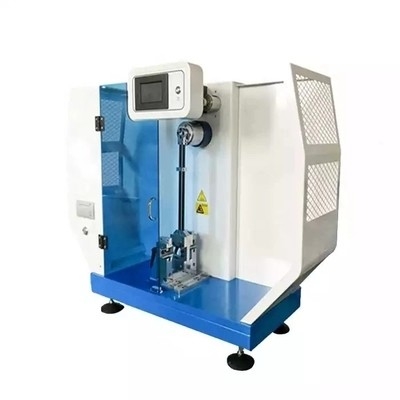

Digital pendulum impact testing machine is a kind of impact testing machine, mainly through the Charpy notch impact performance measurement to determine the impact resistance and impact toughness of metal materials under dynamic load.
In addition, the impact testing machine is based on the potential energy of the pendulum itself, a drop hammer impact sample. Take the pendulum axis of the impact testing machine as the center, when the pendulum is in the pre-lifting Angle position, loosen the pendulum. The sample was hit at a speed of 5∽5.5m/s, as different impact speeds lead to different results. Therefore, only when the impact energy of the sample is completely absorbed by the sample, can it not be absorbed by other parts, so that the impact test data can be accurate and reliable. In order to make the value larger, the testing machine must be sufficiently rigid, and all parts related to the sample should meet the relevant technical conditions. In this way, the measurements can be more accurate.
In general, the digital pendulum impact testing machine also has the following functions:
1. Equipped with electric pendulum lifting and releasing device;
2. The testing process is controlled by a programmable controller;
3. LCD display impact energy and impact absorption work;
4. Semi-closed (completely closed when necessary) protective net to ensure safety;
5. If necessary, it can be equipped with low temperature tank or high temperature furnace, which can be tested under different ambient temperature conditions;
6. There is an interface to connect to the computer.
7 impact testing machine working principle
| Max. Height(mm) | 2000 |
| Max. Size | DIA400 |
| Hammer mass | 0.250~10.00Kg,0.125Kg/per increase |
| Specimen diameter | 10~400 mm, 10~630 mm (outer diameter) |
| orking temperature | 10~35℃ |
| Hammer radius | d25, d90 |
| Impact height | 0-2000 mm |
| Height location error | 2mm, 100% prevent from second impact. |
| Power | AC 380V±10% 5A;2KW |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
