Product Details:
|
| Place Of Origin: | Dongguan China | Support Blade Corner Radius: | R = 1mm |
|---|---|---|---|
| Height Positioning Error: | ± 2mm | Height Location Error: | 2mm, 100% Prevent From Second Impact. |
| LBrand Name: | GSKA | Impact Capacity: | 20gf, 30gf, 50gf, 100gf (or Specified) |
| Hammer Radius: | D25, D90 | MOQ: | 1 Set |
| High Light: | Charpy Impact Test Units,Impact Test Units Ac380V |
||

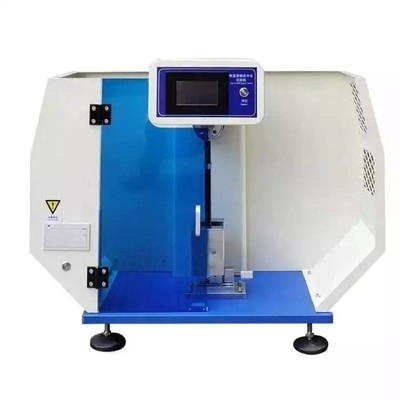

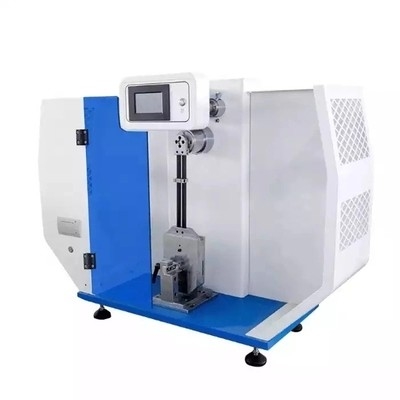

High Accuracy Sensorball Charpy Impact Test Units Equipment Ac380V
The product description:
Impact testing machine is mainly used to determine the impact toughness of hard plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone and electrical insulation materials and other non-metallic materials. It is the ideal test equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments.
Impact testing machine product features:
1, high precision intelligent controller, liquid crystal display, intuitive and accurate data reading.
2. The domestic first use of carbon fiber pendulum (has applied for a patent), in the impact direction, improve the rigidity of the material, the impact quality is concentrated in the center of mass of the pendulum, truly achieve vibration-free impact test, increase the service life.
3, imported high resolution digital encoder, Angle test accuracy is higher and more stable.
4. Pneumatic impact hammer and imported ball bearings, greatly reduce the friction loss caused by the machine.
5, automatic calculation of the final results, test data can save 12 groups of data and take the average.
6, can choose Chinese and English operation interface, test results can choose J/m, KJ/ M2, kG-cm /cm, FT-IB /in and other units.
7. Built-in micro printer to print test data.
| Max. Height(mm) | 2000 |
| Max. Size | DIA400 |
| Hammer mass | 0.250~10.00Kg,0.125Kg/per increase |
| Specimen diameter | 10~400 mm, 10~630 mm (outer diameter) |
| orking temperature | 10~35℃ |
| Hammer radius | d25, d90 |
| Impact height | 0-2000 mm |
| Height location error | 2mm, 100% prevent from second impact. |
| Power | AC 380V±10% 5A;2KW |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
