Product Details:
|
Warranty: | 1 Year, | Place Of Origin: | Guangdong, China |
---|---|---|---|
Temperature Fluctuation: | ±0.5℃ | Temperature Deviation: | ≤2.0℃ |
Humidity Uniformity: | +2,-3%RH | Temperature Range: | -40~+150℃ |
Power: | Electronic | Humidity Fluctuation: | ±2%RH |
High Light: | 80L Climate Test Chamber,1000L Environment Test Chamber |

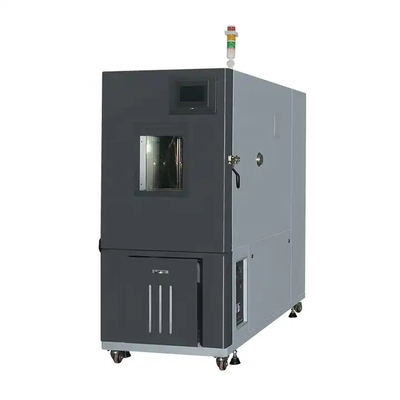

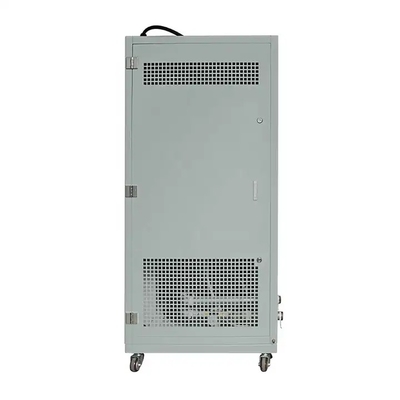

Temperature And Humidity Test Climate Chamber Environment Chamber
Application:
Constant Temperature Humidity Climatic Test Chamber/Equipment/Machine/Cabinet is able to simulate a wide range of temperature and humidity environment condition for testing various products and components. It is widely used for basic thermal cycling test and accelerated stress test. We provide 6 standard models, test cabinet from 80L to 1000L, customized size is also available.
Features:
1. Introduced Japanese and German refrigeration technology, Energy Saving 20%.
2. Easy operation, available for both fixed value test and programmable test.
3. Available for customized design and provide various options to meet different test requirements.

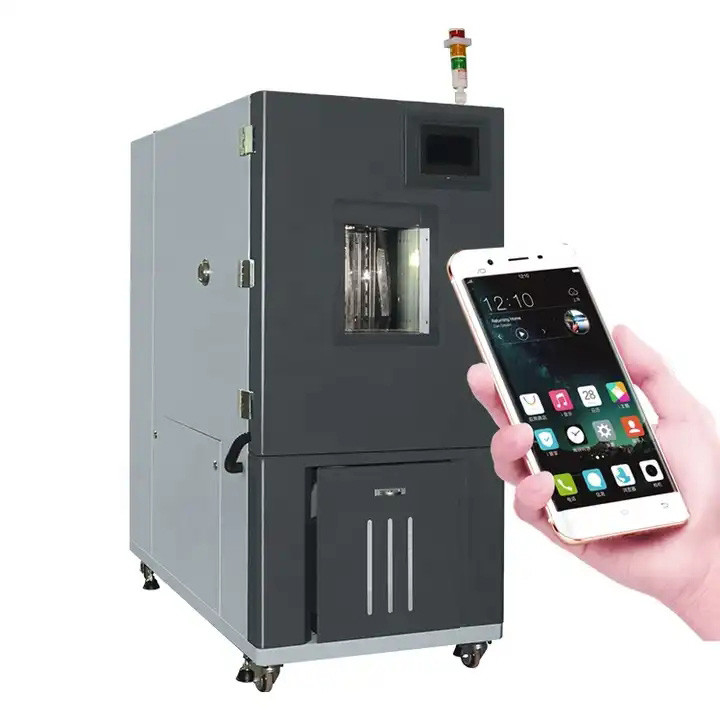

4. RS485 and RJ45 communications, available to computer remote control.
5. Fog-free observation window and interior light to view product under test.
6. Programmable
Standard Compliance:
1. IEC68-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. IEC68-2-3 Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state
4. IEC68-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
5. IEC68-2-14 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
6. MIL-STD-810D High temperature test
7. MIL-STD-810D Low temperature test
8. MIL-STD-810D Damp heat test
Product specifications:
Model | GS-80 | GS-150 | GS-225 | GS-408 | GS-800 | GS-1000 |
Test Space W x H x D (mm) |
500x600x 500 |
500x600x 500 |
500x750x 600 |
600x850x 800 |
1000x1000x 800 |
1000x1000x 1000 |
External Dimension W x H x D (mm) |
650x1650x 1270 |
700x1700x 1370 |
700x1750x 1420 |
650x1650x 1270 |
1200x1900x 1620 |
1200x1900x 1820 |
Cooling Method | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling |
Performance parameters:
Temperature Range | A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-70~150℃ |
Humidity Range | 20%RH-98%RH (details see temperature humidity control diagram). |
Temperature Fluctuation | ±0.5℃ |
Humidity Fluctuation | ±2%RH |
Temperature Deviation | ≤2.0℃ |
Humidity Deviation | A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH. |
Temperature Uniformity | ≤±2.0℃ |
Humidity Uniformity | +2,-3%RH |
Heating Rate | Approx 3℃/mins,average non-linear ,no load |
Cooling Rate | Approx 1℃/ mins,average non-linear ,no load |
Temperature Overshoot | ≤±2℃ |
Internal Material | 1.2mm thick SUS#304 high &low temperature resistance stainless steel. |
External Material | Adopt flame retardant high strength PU Polyurethane foam insulation material. |
Control Method | Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning |
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:-Yes, we are manufacturer
Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can
send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send
you new spare parts or provide on-site repair.
2. What’s the delivery term?
A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national
authoritative third-party inspection agency.
5.what about the packing of equipment?
A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the
foam.
