Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Tensile Strength Testeing Equipment: | 0.001N | Accuracy Of Displacement: | ≤0.5% |
| Test Width: | 40 Cm (can Be Customized) | Material: | Stainless Steel Frame |
| Load Resolution: | 1/250,000 | Test Speed: | 0.1-500mm/min |
product presentation:

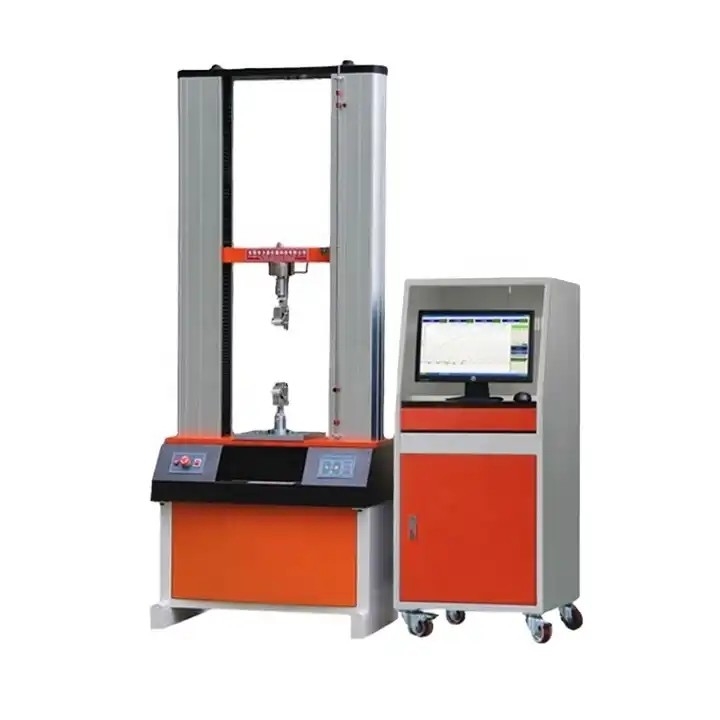

Hydraulic universal tensile testing machine can achieve constant force, constant stress, constant deformation, constant speed and other modes of closed-loop control, complete the tensile, compression, bending and shear tests of metal materials, non-metal materials. The micro-computer-controlled electro-hydraulic servo universal testing machine adopts the lower type host of the oil cylinder, and is equipped with the electro-hydraulic servo oil source of the oil pump generator and servo valve imported from Italy and the independent low noise clamping oil source. Full digital programmable amplifier with control mode intelligent setting expert system. Hydraulic universal tensile testing machine can achieve constant force, constant stress, constant deformation, constant speed and other modes of closed-loop control, complete the tensile, compression, bending and shear tests of metal materials, non-metal materials. The micro-computer-controlled electro-hydraulic servo universal testing machine adopts the lower type host of the oil cylinder, and is equipped with the electro-hydraulic servo oil source of the oil pump generator and servo valve imported from Italy and the independent low noise clamping oil source. Full digital programmable amplifier with control mode intelligent setting expert system.
Advantages:
|
Measuring range of force value
|
0.2%~100Fs
|
||||
|
2%~100Fs
|
|||||
|
Relative error of indicating value
|
±0.5%
|
||||
|
±1%
|
|||||
|
Deformation measurement device
|
Extensometer
|
||||
|
Max. Tensile Space(mm)
|
800
|
820
|
850
|
800
|
800
|
|
600
|
600
|
680
|
600
|
600
|
|
|
Max. Compression Space (mm)
|
700
|
720
|
720
|
700
|
700
|
|
500
|
500
|
560
|
500
|
500
|
|
|
Transmission mode
|
Chain Transmission
|
||||
|
safety protection device
|
Software protection and mechanical limit protection
|
||||
|
Control function
|
Special software, stress, strain, Three closed-loops with velocity
|
||||
|
Clamping diameter range of round sample(mm)
|
Φ10~Φ32
|
Φ10~Φ40
|
Φ15~Φ55
|
Φ15~Φ70
|
Φ25~Φ80
|
|
Φ10~Φ32
|
Φ13~Φ40
|
Φ13~Φ60
|
Φ20~Φ70
|
Φ25~Φ80
|
|
|
Clamping diameter range of flat sample(mm)
|
2~25
|
2~30
|
2~40
|
10-40
|
0~40
|
|
0~15
|
0~30
Standard configuration 0~15
|
0~40
Standard configuration 0~20
|
0~40
|
0~40
|
|
|
Upper and Lower Pressure Plate Size
|
Φ188
|
Φ188
|
Φ208
|
Φ208
|
Φ208
|
|

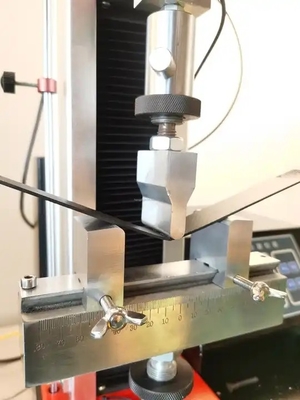

Bending branch roll width (mm)
|
140
|
140
|
|||
|
Total Power(kW)
|
2.5
|
2.5
|
2.5
|
3.0
|
5.0
|
|
2.0
|
2.1
|
2.5
|
3.0
|
5.0
|
|
|
Host size
|
910*740*2260
|
960*780*2400
|
1120*900*2735
|
1230*960*3125
|
1350*1050*3650
|
|
800*620*1900
|
820*650*2000
|
940*780*2250
|
1100*760*3000
|
1250*930*3550
|
|
|
Oil source size
|
930*725*1825
|
||||
|
1140*600*855
|
|||||
