Product Details:
|
Warranty: | 1 Years | Place Of Origin: | Guangdong, China |
---|---|---|---|
Power Supply: | 400W | Measuring Range: | 1N-500N |
Net Weight: | 110Kg | Power: | Electronic |
Accuracy: | 1% | Size: | 410*430*1550mm |

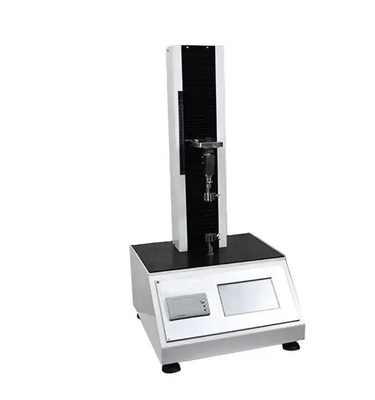

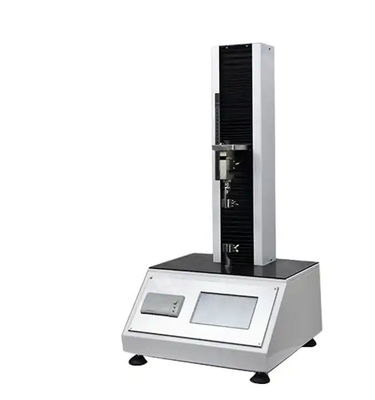

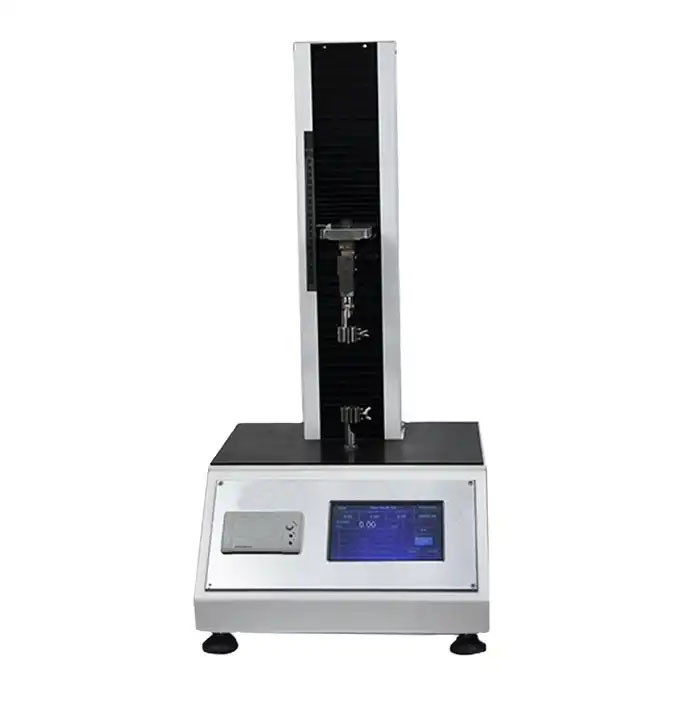

Universal Tensile Testing Machine / Tear Resistance Tester To Test Tensile Strength
product presentation:
Tear resistance testing machine can test metal, rubber, plastic, textile, leather, paper, film, adhesive, composite materials such as tensile, compression, adhesion, peeling, release force, tear, etc., the newly developed B-type display operation mode in the match model is also the most elastic, and data output and special software connection can be in the computer to do analysis, statistics, storage and other functions. Tear testing machine can test metal, rubber, plastic, textile, leather, paper, film, adhesive, composite materials such as tensile, compression, adhesion, peeling, release force, tear, etc., the newly developed B-type display operation mode in the match model is also the most elastic, and data output and special software connection can be in the computer to do analysis, statistics, storage and other functions.
1) Color touch screen display.
2)The test force can be adjusted in a wide range, stable and effectively.
3) Display test force, test speed and displacement at real time.
4) It can automatically return to the original position after test.
5) With limit position protection, over load protection and over current protect.
6). Equipped with mini printer, test report can be printed out
Max test force | 500N |
Precision of the equipment | 1% |
Measuring range | 1N-500N |
Relative error of indicating value | 1% |
Resolution of test force | 1/200000 |
Min reading value of deformation | 0.01mm |
Speed range | 1-500mm/min |
Stroke of crossbeam | 400mm |
Loading mode | Electrically |
Control mode | Micro-computer |
Voltage (should connect to the ground) | AC 220V 50Hz |
Power | 400W |
Dimension of main machine | 410X430X1550mm |
Weight |
|
