Product Details:
|
Warranty: | 1 Years | Place Of Origin: | Guangdong, China |
---|---|---|---|
Operation: | Microcomputer | Test Result: | Computer Output |
Accuracy: | 0.5% | Test Speed Range: | 0.1~500mm/min |
Force Capacity: | Max 500kg | Resolution: | 1/250000 |

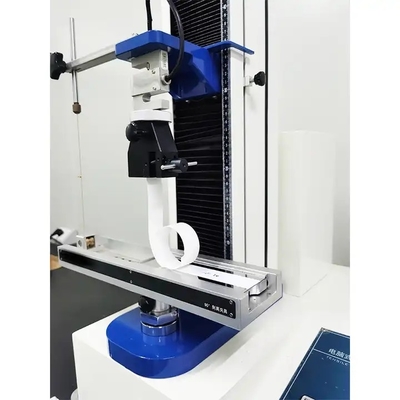

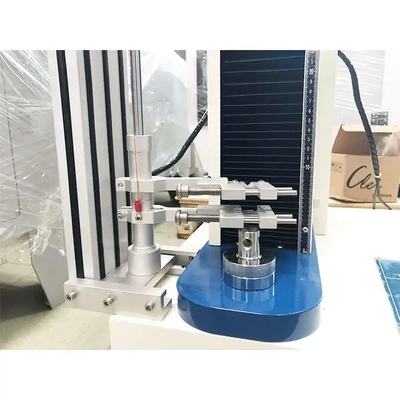

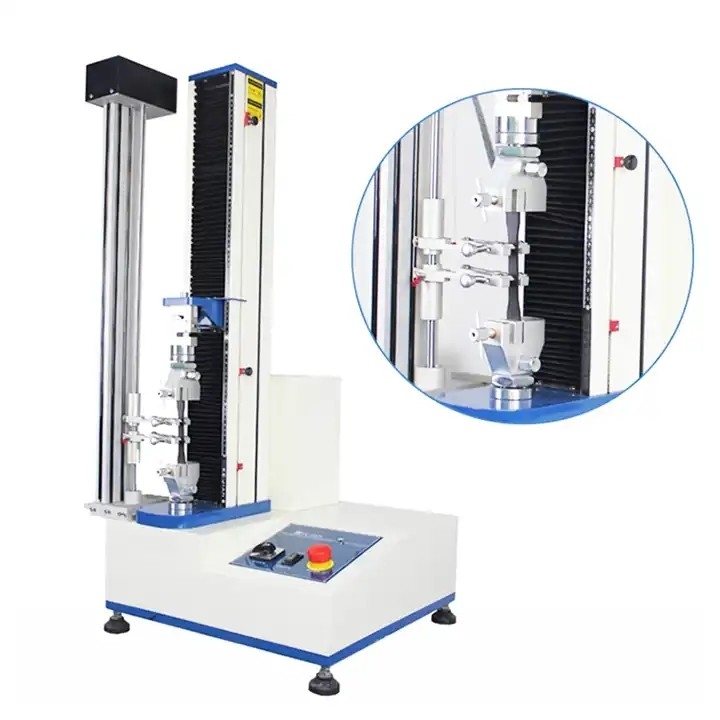

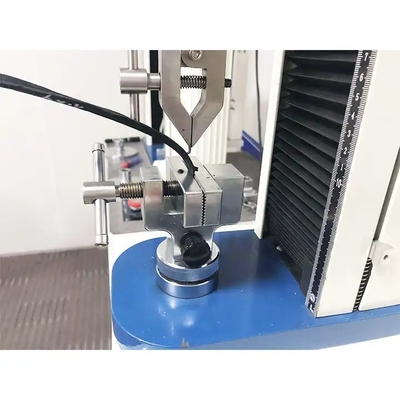

Ultimate Universal Tensile Testing Machines , Peel Force Tensile Strength Tester
product presentation:
Peeling strength tester is a professional for adhesive, adhesive tape, adhesive, medical patch, protective film, release paper, composite film, artificial leather, woven bag, film, paper and other related products peeling, breaking and other electronic peeling tester.
Features:
The system is controlled by microcomputer, with LED digital display screen and PVC operating panel, convenient for users to quickly and intuitively view the test data and results
Equipped with a variety of specifications of force value sensor, support peel and tensile dual test mode
7 test speeds are provided to meet the requirements of different test conditions
The maximum, minimum and average values of test data are given in each test, and the function of group statistical analysis is provided
Intelligent configuration, such as limit protection, overload protection, automatic zero clearing, and fault warning, ensures user's operation safety
Equipped with precision reading scale, easy to read the elongation of the sample
Equipped with micro printer and RS232 universal data interface, convenient data output and transfer
Support for Lystem™ laboratory data sharing system, unified management of test results and test reports
Capacity choice
|
1,2,5,10,20,50,100,200,500kg optional
|
Stroke
|
650mm(excluding clamp)
|
Range of speed
|
0.1~500mm/min
|
Effective testing space
|
120mm
|
Weight
|
70kg
|
Accuracy
|
±0.5%
|
Operation method
|
Windows operation
|
Resolution
|
1/250,000
|
Dimention
|
(W×D×H)58×58×125cm
|
Motor
|
Japan Panasonic servo motor
|
Accessories
|
computer, printer, system operation manual
|
Optional accessories
|
stretcher, air clamp
|
Power
|
1PH, AC220V, 50/60Hz
|
