Product Details:
|
| Warranty: | One Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Vibration Frequency: | 100~300rpm | Effective Area Of Working Table: | 1000x1000mm |
| Max. Load: | 100kg / 1000kg Optional 2000kg | Dimension: | 1100x1300x650mm |
| Application: | Package Box | Motor: | 1HP (750W) |
| Highlight: | 300rpm Vibration Test Equipment,CNC Timing Vibration Testing Machine |
||

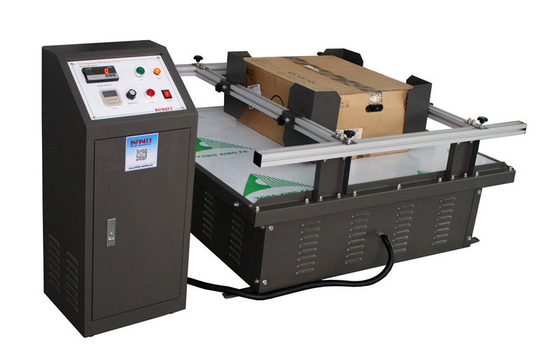

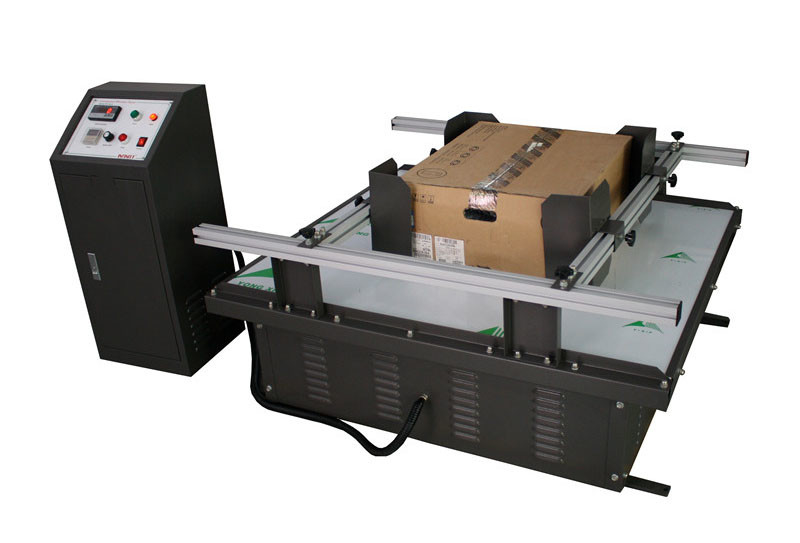

Packing Box Packing And Transportation Equipment Vibration Test Testing Equipment
Vibration testing machine of packaging and transportation of electrical and electronic products in the experiment, especially for the production of household appliances enterprises more and more attention, this test is mainly used to assess the strength of packaging in sinusoidal vibration or resonance and the protection ability of packaging internal contents, This simulated transportation test can also detect defects in the product structure in time in the laboratory, so that the design can be improved so that when the product reaches the user, its performance will not change due to the transportation. This kind of test is mainly used to evaluate the strength of the package in sinusoidal vibration or resonance and the protection ability of the package inside. This kind of simulation transport test can also find the defects on the product structure in the laboratory in time, so as to improve the design to make the product reach the user's hands. It does not change its performance through transportation.
1. Packaging and transportation vibration testing machine with high precision - microcomputer CNC timing; Digital display vibration rate monitoring.
2. Very low noise - synchronous noise belt rotation; Dc motor buffer start; Vibration proof rubber footing.
3. Easy to operate -- aluminum profile slide clamp.
4. Easy to assemble and disassemble - heavy handle steel bottom frame with shock absorbing rubber bottom pad, the whole machine without fixing, stable operation.
specification:
| Products | Package Carton Vibration Test Machine | ||
| Model | GS-65Y | ||
| Vibrating frequency | 100~300rpm | ||
| Vibrating amplitude | 25.4mm (1 Inch) | ||
| Timer | 0~999.99hours | ||
| Vibrating manner | Cycling type | ||
| Max. load | 100kg | ||
| Effective area of working table | 1000x1000mm | ||
| Motor | 1HP (750W) | ||
| Main unit dimension (WxDxH) | 1100x1300x650mm | ||
| Weight | About 300kg | ||
| Power supply | AC220V 10A or specified | ||
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
