Product Details:
|
| Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Testing Dimension: | 130*120 Cm | Frequency: | Frequency Of 2-5Hz Continuously Adjustable |
| Dimension: | 140*130 Cm | Power: | Electronic, 220V 60Hz |
| Rated Load: | 150 Kg | Amplitude: | 25.4MM(1 Inch) |
| Highlight: | Rotary DC Motor Vibration Testing Machine,25.4MM Vibration Test Machine |
||

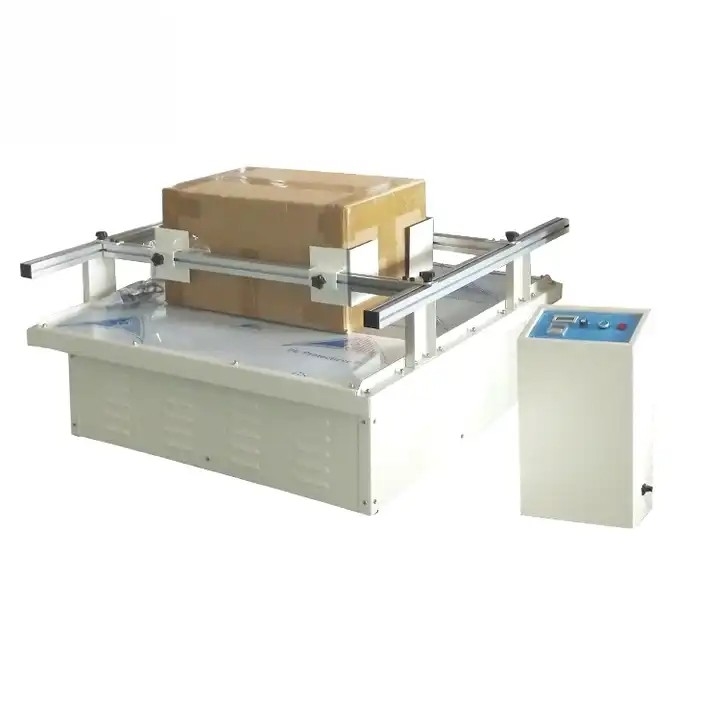

Cosmetics Carton Vibration Testing Machine Packaging Testing Instrument
Carton vibration test machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Main Features:
Digital instrument display vibration frequency; synchronous belt transmission mute, very low noise; test items using clamping rail type, easy to operate, safe; machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw; DC motor speed control, running smoothly, load capability; rotary vibration (commonly known as Valley-type).
Applications Industry:
The machine applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
specification:
| Model | GS-6U21 | GS-6U22 | GS-6U23 |
| Rated load | 75 kg | 150 kg | 230 kg |
| Testing dimension | 110*98 cm | 130*120 cm | 180*150cm |
| Maximum Acceleration | 1.25g | ||
| Frequency | Frequency of 2-5 Hz continuously adjustable | ||
| Amplitude | 25.4MM(1 Inch) | ||
| Power | 220 V60Hz | ||
| Motor | Rotary DC motor | ||
| Fence Height | 33 cm,38 cm,42 cm | ||
| Dimension | 20×110 cm | 140×130 cm | 190×160 cm |
| Gross | 169 kg | 288 kg | 396 kg |
FQA:
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan,
Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -
delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
