Product Details:
|
Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
---|---|---|---|
Weight: | 150kg | Specification: | 700*560*680 Mm |
Control: | Computer Control | Power Source: | AC220V |
Direction Of Vibration: | Vertical Or Leve | Transport Package: | Standard Strong Wood Case |
High Light: | Three Axis Horizontal Shaker Table,220V Vibration Testing Machine |
Application:

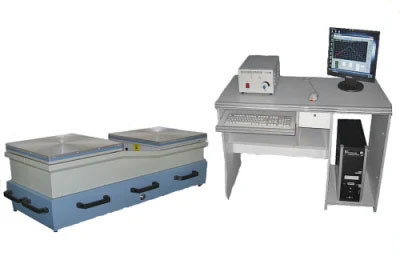

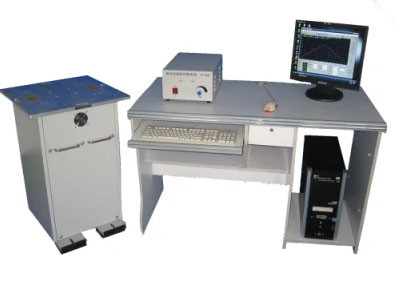

We are manufacturer of Electrodynamic High Frequency Vibration Tester series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation’ advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
High-frequency Vibration Tester Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Specification :
Model Number | GS-6UK | |
Power: | AC 220V/50Hz ±2% | |
Operating ambient temp: | 0~+45ºC | |
performance | Max.Load(kg): | 40kg |
Frequency range(Hz): | 3~200Hz | |
Sweep-frequency range(Hz): | 3~200Hz | |
Amplitude(mm): | 0~5mm | |
Vibration direction: | vertical and horizontal | |
Set time range(s): | 1~350000 s | |
Working table size L.W.H(mm) | 450×450×43mm | |
Machine size L.W.H(mm): | 1300×570×450mm | |
Control chamber size L.W.H(mm: | 420×300×750mm | |
Power(KVA): | 2.8 |
FQA:
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan,
Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -
delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
