Product Details:
|
| Power: | Electronic | Humidity Range: | 20%~98%R.H |
|---|---|---|---|
| Humidity Fluctuation: | ±2.5%R.H | Interior Material: | Sus#304 Stainless Steel Plate |
| Temperature Range: | -65°C~120°C | Temperture Fluctuation: | ±0.5℃ |
| Temperature Deviation: | ±2.0℃ | Floor Bearing Load: | Rigid Polyurethane Foam + Glass Fobre |
| Highlight: | Sus304 Environment Test Chamber,Rigid Polyurethane Foam Environmental Test Chamber |
||

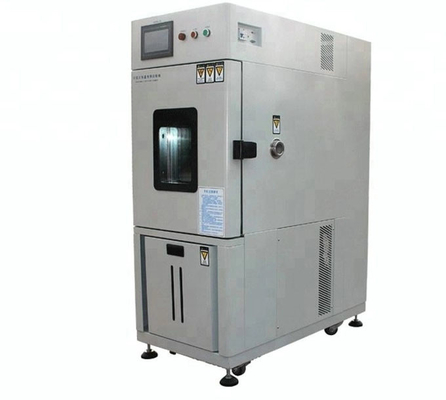

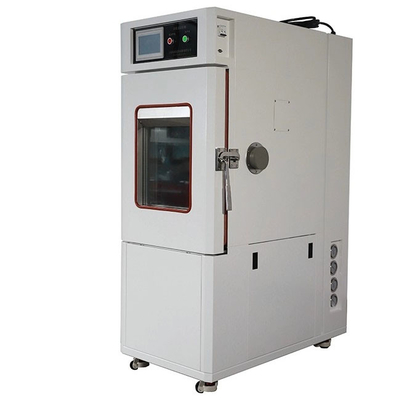

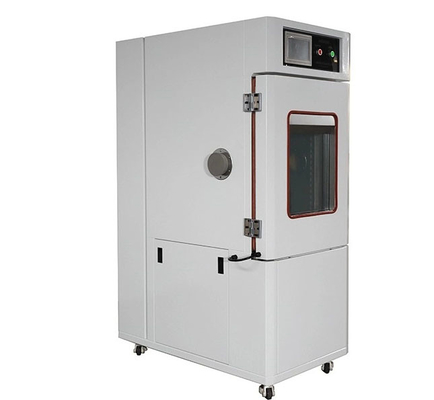

High And Low Temperature And Humidity Environment Test Chamber Laboratory Equipment
Character:
Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.
large LCD color touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.
Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.
RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.
Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.
Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
Left side of chamber with diameter 50mm cable port for power-on test.
Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.
Uses:
Electronics, electrical appliances, sensors
Semiconductor, PCB, LCD & LED
Medicals tests
Mechanical, Military, aerospace products
Vehicles, Transprt, automobile supply industries
Chemicals, Petrochemical industries
Building materials, Plastics, Textile industries
Testing metal related industries like plating etc.
Instrumentation
Parameter:
| System | Balanced temperature & humidity control system | ||||||||||
| Temperature range | -70°C~150°C Rapid temperature nolinear (linearly is option) | ||||||||||
| Humidity range | 20%~98%RH | ||||||||||
| Temperture fluctuation | ±0.5℃ | ||||||||||
| Humidity fluctuation | ±2.5%RH | ||||||||||
| Temperature deviation | ±2.0℃ | ||||||||||
| Humidity deviation | ±3%RH(≥75%)/±5%RH(<75%) | ||||||||||
| Heat up time | -20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75 minutes, | ||||||||||
| Pull down time | 20°C~-20°C 40 minutes, 20°C~-40°C 60 minutes, 20°C~-70°C 85 minutes, | ||||||||||
| Interior material | SUS#304 Stainless steel plate | ||||||||||
| Exterior material | Backed paiting steel or stainless steel(SUS304) | ||||||||||
| Insulation material | Rigid polyruethane foam +glass fibre | ||||||||||
| Floor bearing load | 500Kg/m3 | ||||||||||
| Refrigeration system | Air cooled (Water cooled type is option) | ||||||||||
| Singl section/cascade type, hermetic/semitight compressor,CFC free refrigerant | |||||||||||
| Controller | Color LCD screen in English/Chinese, programing,communicating function | ||||||||||
| Safety devices | No welding wire switch,compressor overheating and over current protection,over temperature protection, blower overload protection,dry heating machine protector,low water protection,fault warning system. | ||||||||||
| Standard accessories | One observation window, one test hole(Φ5cm), two sets of test racks, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2 meters of power cord, communication interface | ||||||||||
| Ambinet temperature | 5°C~35°C | ||||||||||
| Power | AC380±10% 50HZ 3 phase 4 wires+ground wires | ||||||||||
FQA:
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your
requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,
Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
