Product Details:
|
| Relative Humidity(Temp&Humi): | RH20%-98% (10%~98% Customize) | Heat-up Time(min): | 1°C~15°C/min(Linear Or Non-linear) |
|---|---|---|---|
| Temp Fluctuation: | ±0.5°C | Temp&Humi Deviation: | ±1°C /±3%RH |
| Temp Range: | -70°C ~ 150°C (100°C Customize) A:0°C B: -20°C C: -40°C D: -60°C E: -70°C | Pull-down Time(min): | 1°C~15°C/min(Linear Or Non-linear) |
| Temp Uniformity: | ±1°C | Power Source: | AC:220V/380V 50/60Hz |
| High Light: | BTHC Temperature Humidity Chamber,Climatic Test Chamber 380V |
||

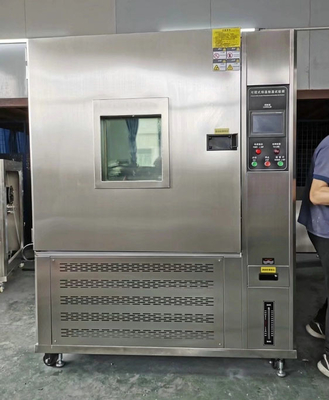

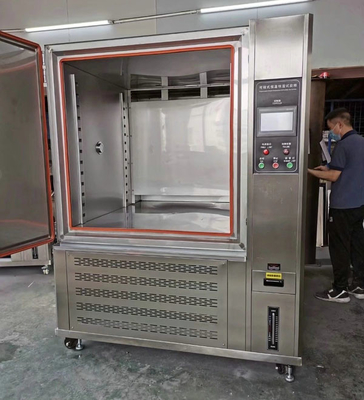

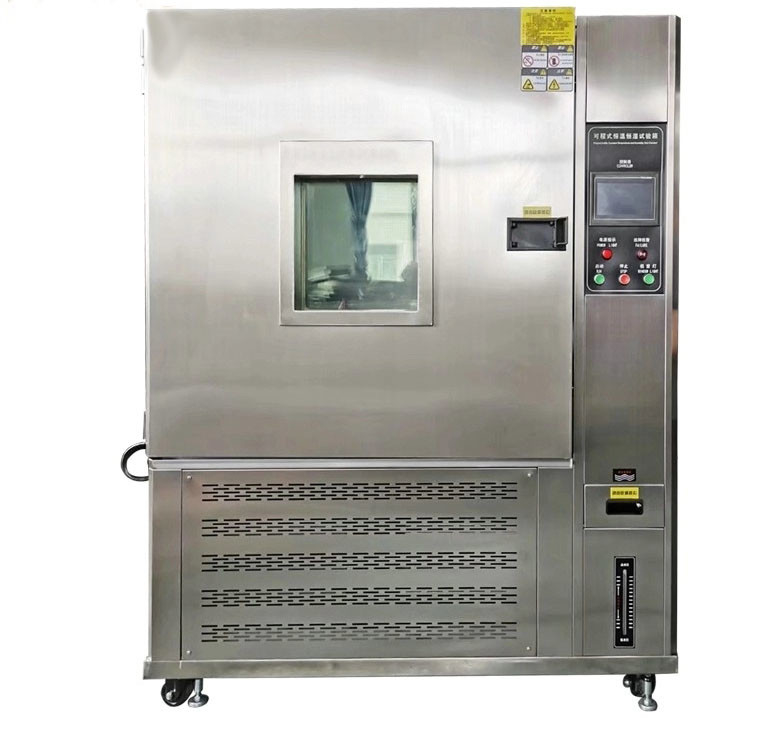

Constant Temperature Humidity Chamber Environmental Chamber Climatic Test Chamber
product presentation:
The constant temperature and humidity test chamber is used to test various performance indexes of electronic products, materials, electrical engineering, instruments and meters under high and low temperature or humid and hot environments. Why do electronic products need constant temperature and humidity environmental test? With the rapid development of modern industrial technology, the application fields of electronic and electrical products are becoming wider and wider, and the environmental conditions they are subjected to are becoming more and more complex and diverse. Only by reasonably stipulating the environmental conditions of the product and choosing the correct environmental protection measures for the product can the product be protected from damage during storage and transportation, and safe and reliable during use. Therefore, artificial simulation of electronic and electrical products. Environmental testing is to ensure that it is safe and reliable in all aspects of production, transportation, and use. Performing artificial environmental tests on electronic and electrical products before leaving the factory is an indispensable and important link for quality assurance. Therefore, whether environmental test conditions, test methods, and test equipment comply with standards is of great importance. The constant temperature and humidity test chamber is one of the main tests of the artificial three defenses, and its application is becoming more and more extensive, and it is also being valued by more and more military products, scientific research institutions, universities and other research institutions.
Product Paramenters:
|
Model
|
GS-65U
|
|
|
System
|
Temperature and Humidity Balance Control (BTHC) System
|
|
|
Test area capacity
|
64L
|
|
|
Test area load-bearing capacity
|
30KG
|
|
|
Internal dimensions W×H×D mm
|
400*400*400
|
|
|
Dimensions W×H×D mm
|
640*1688*1305
|
|
|
Weight
|
400kg
|
|
|
Power
|
1φ220V AC&50/60Hz,24A or 3φ380V AC&50/60Hz,10A
|
|
|
Performance
|
Temperature & Humidity Range
|
-70～＋100℃ (+150℃/+180℃) / 10～98%rh
|
|
Temperature & Humidity Fluctuations
|
±0.3°C / ±2.5%rh
|
|
|
Temperature uniformity
|
1.5°C
|
|
|
Temperature change rate
|
Heating rate:3.0°C/min Cooling rate:2.0°C/min
|
|
|
Extreme temperature reach time
|
Heating time:from＋20 to＋100℃ 30 minutes Cooling time:+20 to -20°C 20 minutes
|
|
|
Allowable heat load
|
est area temperature +20°C:300 W
|
|
|
Structure
|
Appearance material
|
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
|
|
Test area material
|
1.2mm thick SUS304 stainless steel
|
|
|
Heater
|
Finned Nichrome Explosion-Proof Heater
|
|
|
Humidifier
|
Stainless Steel Sheathed Humidifier (Steam Humidification)
|
|
|
Condenser
|
Air-cooled condenser
|
|
|
Air circulator
|
Centrifugal fan
|
|
|
Water supply
|
Standard water tank
10 L
|
|
|
Refrigeration unit
|
System
|
Mechanical single-stage compression cooling
|
|
Compressor
|
Scroll/Piston Compressor
|
|
|
Refrigerant
|
R404A [R449A available on request]
|
|
|
Power
|
3.0 Kw
|
|
|
Noise level
|
68dB
|
|
|
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature,
65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃. |
||
FQA:
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your
requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,
Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
