Product Details:
|
| Internal Size: | 45x60x45 Cm | Relative Humidity: | 20%-98%RH |
|---|---|---|---|
| Temp Rising Time: | About 3~5℃/min | Temp Fluctuation: | ±0.5℃ |
| Temp&humidity Deviation: | ±1℃ / ±3%RH | Exteral Material: | Coating Or 304 Stainless Steel Plate |
| External Size: | 75(W)x189(H)x110(D) Cm | Temp Range: | -70℃~150℃ |
| Highlight: | BTHC Climatic Test Chamber,Climatic Test Chamber 80L |
||

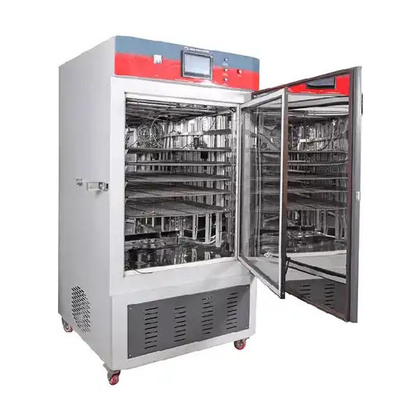

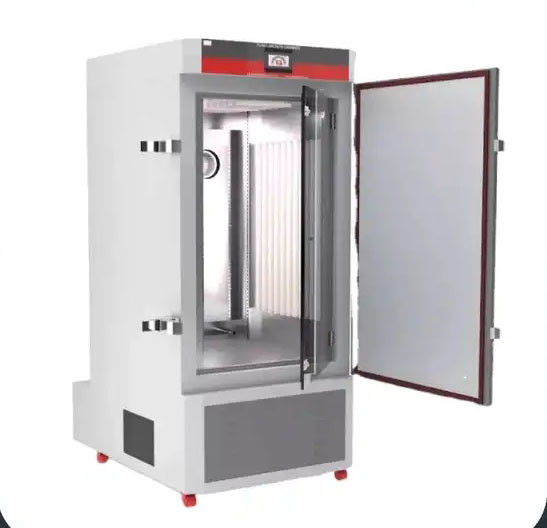

80L -70℃~150℃ Constant Temperature Humidity Environmental Climatic Test Chamber
product presentation:
Constant temperature and humidity environment test chamber refers to the temperature, humidity, constant together detection equipment, can be realistic simulation of natural temperature and humidity conditions, temperature test refers to a one-time need to do the temperature, humidity, time set in the instrument parameters, the test chamber will follow the set procedures, humid heat test is on the basis of temperature to add humid heat system, The humidity test can also be done when the temperature is done, so that the test effect is closer to the natural climate, simulate a more severe natural climate, so that the reliability of the tested sample is higher.
The constant temperature and humidity environment test chamber can simulate various temperature and humidity environment, suitable for testing electronics, electrical appliances, food, automobile, rubber, plastic glue, metal and other products, meet the GB/T2423, GJB150A1/4 all kinds of harsh environment reliability machine stability performance parameters, will provide you with forecast and improve the quality and reliability of products.
|
Model
|
GS-65P
|
|
|
System
|
Temperature and Humidity Balance Control (BTHC) System
|
|
|
Test area capacity
|
64L
|
|
|
Test area load-bearing capacity
|
30KG
|
|
|
Internal dimensions W×H×D mm
|
400*400*400
|
|
|
Dimensions W×H×D mm
|
640*1688*1305
|
|
|
Weight
|
400kg
|
|
|
Power
|
1φ220V AC&50/60Hz,24A or 3φ380V AC&50/60Hz,10A
|
|
|
Performance
|
Temperature & Humidity Range
|
-70～＋100℃ (+150℃/+180℃) / 10～98%rh
|
|
Temperature & Humidity Fluctuations
|
±0.3°C / ±2.5%rh
|
|
|
Temperature uniformity
|
1.5°C
|
|
|
Temperature change rate
|
Heating rate:3.0°C/min Cooling rate:2.0°C/min
|
|
|
Extreme temperature reach time
|
Heating time:from＋20 to＋100℃ 30 minutes Cooling time:+20 to -20°C 20 minutes
|
|
|
Allowable heat load
|
est area temperature +20°C:300 W
|
|
|
Structure
|
Appearance material
|
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
|
|
Test area material
|
1.2mm thick SUS304 stainless steel
|
|
|
Heater
|
Finned Nichrome Explosion-Proof Heater
|
|
|
Humidifier
|
Stainless Steel Sheathed Humidifier (Steam Humidification)
|
|
|
Condenser
|
Air-cooled condenser
|
|
|
Air circulator
|
Centrifugal fan
|
|
|
Water supply
|
Standard water tank
10 L
|
|
|
Refrigeration unit
|
System
|
Mechanical single-stage compression cooling
|
|
Compressor
|
Scroll/Piston Compressor
|
|
|
Refrigerant
|
R404A [R449A available on request]
|
|
|
Power
|
3.0 Kw
|
|
|
Noise level
|
68dB
|
|
|
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature,
65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃ |
||
FQA:
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your
requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,
Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
