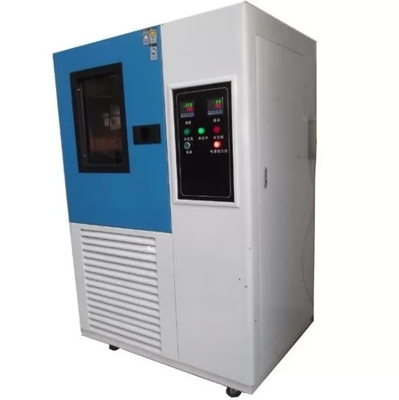

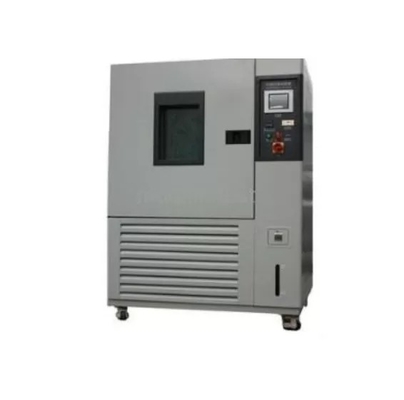

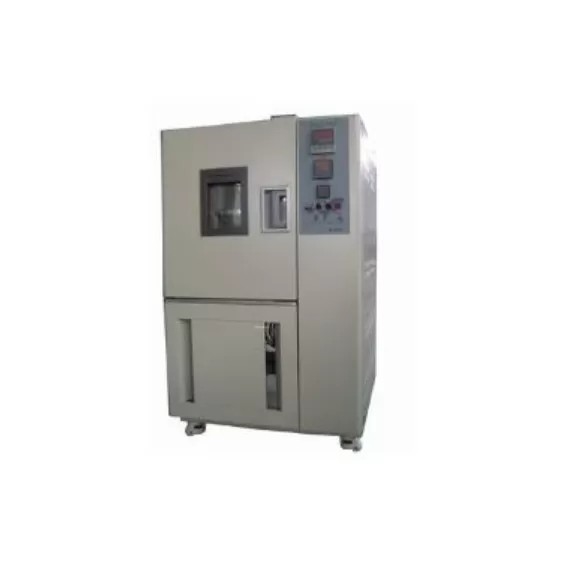

Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C

Certification
China Dongguan FREETO Medical Technology Co., LTD certification
China Dongguan FREETO Medical Technology Co., LTD certification
Customer Reviews
The box structure is beautiful and generous, and the use of no reaction handle, simple operation, temperature and humidity stable operation, high accuracy. Explain the operation method of the equipment in detail, very good

—— Masood Rehman

I must confess you have a brilliant customer relations skills and i am learning from you. I tell you if you want to see how beautiful Zambia in Africa

—— Dr Claude VILLETTE -----France

Thanks always giving me good products. thanks for your effort you done before. your firend from Egypt.

—— Waleed-Egypt

I'm Online Chat Now

Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C

Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C
Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C

Large Image :  Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GS-614T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C

Description
Power: Electronic Humidity Range: 20%~98%R.H
Internal Dim: 50-1000L Interior Material: Sus#304 Stainless Steel Plate
Temp Uniformity: ±1℃ Power Source: AC:380V 50Hz
Temp Range: 15~70℃ Floor Bearing Load: Rigid Polyurethane Foam + Glass Fobre
Highlight:

50L Environment Test Chamber

,

Volatile Organic Compounds Environment Test Chamber

Environment Test Chamber Detection Of Volatile Organic Compounds In 15~70℃



product presentation​:



The test site for environmental tests should be broadly representative, capable of carrying out as many test items as possible, and should be as close as possible to the environment in which future operations may take place. However, the environmental test site is often different from the real operating environment.



In the selection of simulation test items, we should specifically analyze the requirements for the use of test items, so that the selected test items not only represent the main use environment, but also can speed up the test and save money. During and after World War II, Western countries, especially the United States, established a series of environmental test sites and laboratories and developed environmental test standards. The U.S. military requires that all weapons, components and materials, as well as ammunition, be sent first to environmental laboratories for simulated environmental tests, and then to environmental testing sites for field environmental tests. Only after these tests are passed can they be officially delivered to the troops for use. The U.S. military has adopted environmental testing as part of its testing and certification efforts.



Advantages of environmental test chamber:



1.Cabin material:the outer warehouse wall is made of thickened color steel plate, the inner liner is made of SUS304 mirror stainless steel, and the insulation system is made of polyurethane insulation material.
2.Air supply system: it is composed of oil-free air pump, dehumidifier, flow controller, etc.The air pump adopts imported air pump with stable quality.
3.Air filtration system: mainly includes VOC, formaldehyde filters and particulate membrane filters.High filtration efficiency, convenient replacement, low cost.
4.Humidity control system: temperature using dry and wet mixed humidity control technology.PLC intelligent control, high precision, low energy consumption.
5.Temperature control system: the overall temperature control using air jacket thermal radiation control mode.
6.The inner air chamber circulation system: the inner circulation system adopts the bottom suction air, the top uniform air supply mode, the wind speed adjustment adopts the adjustable frequency conversion wind speed control technology.
7.Man-machine interface control system: the system adopts color page LCD touch screen controller, independent research and development program, can be expanded, the control system is stable.
8.Safety protection system: the system is equipped with perfect security protection system, such as refrigerant compressor overpressure, overheating protection, leakage protection, motor over-current protection, overtemperature protection, humidification system fan overheating, lack of phase or phase sequence protection and power leakage protection system, load short circuit protection safety protection system, ensure the safe operation of equipment.



Parameter:



Model GS-614T GS-615T GS-616T GS-617T GS-618T

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply



Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C 0

Detection Of Volatile Organic Compounds Environment Test Chamber 15-70C 1



FQA:



1.Are your company a trading one or a factory ?


Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.

2.How to choose the most suitable products?



Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are



in urgent need, we can consider making special arrangement for you.

4.Do you accept customization service?



Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your



requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?



Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

6.Do you have customers of our country before?



Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,



Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.

7.How about your warranty?



Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers



may go to your place for better service.
