Product Details:
|
Temperature Control Range: | -70℃~180℃ | Cooling Rate: | -70.0℃~180.0℃ Within 60 Mins |
---|---|---|---|
Humidity Control Range: | 10.0%RH~98.0%RH | Temperature Fluctuation: | ±0.5℃ |
Temperature Uniformity: | ±1.5℃ (-40.0℃~100.0℃) | Fan: | Centrifugal Blower |
Place Of Origin: | Donggaun,china | Band: | GSKA |
Highlight: | Centrifugal Blower Temperature And Humidity Room,SUS304 Temperature And Humidity Room |

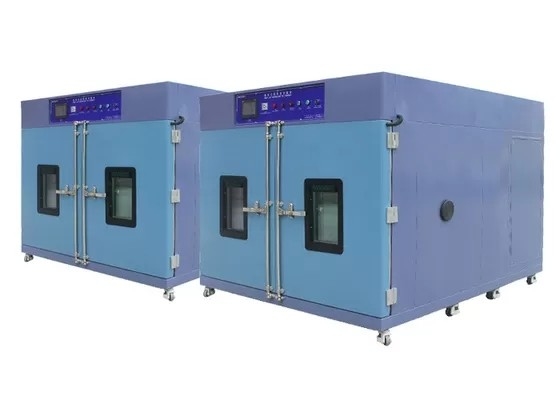

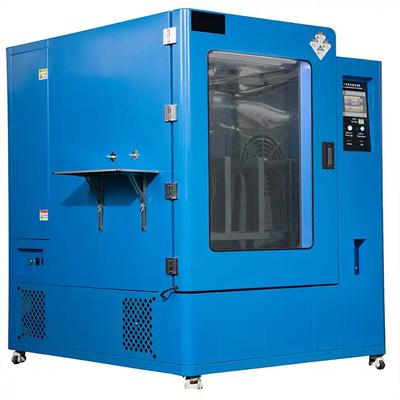

Low-Cost Environmental Simulation Room/Temperature And Humidity Room -70℃~180℃
product presentation:
Simulation environment humidity and heat laboratory box structure:
The base of large-scale simulation environment wet heat laboratory body adopts 8 # channel steel welded into a mesh frame, so that it can bear the weight of the chamber body and personnel specimens under horizontal conditions, without the uneven and cracking of the bottom surface of the chamber body. Bearing capacity of 200kg/ per square meter (laboratory body (shell)) is divided into six rooms and a double or single open chamber door, the material of the chamber is high quality stainless steel plate (to prevent rust on the inner wall in humidity running state for a long time), the outer chamber is high quality color steel plate, the insulation medium is polyurethane hard foam heat insulation, light weight resistance, good heat insulation performance, The door material is also made of color steel plate, and the door handle is open inside and outside, so as to facilitate the test personnel to open the door freely from the closed room. With unique balanced temperature and humidity regulation, a safe and accurate temperature and humidity environment can be obtained. With stable and balanced heating and humidification performance, high precision, high temperature and humidity control. Equipped with high precision intelligent temperature regulator, temperature and humidity using color LCD touch screen, can carry out a variety of complex program setting, program setting using dialogue mode, simple operation, rapid automatic selection of refrigeration circuit, automatic control device with the temperature set value of automatic selection of refrigeration circuit, to achieve the high temperature state of direct start refrigeration, direct cooling. The door is equipped with a large observation window, which can conveniently observe the test state of the test sample. Equipped with multiple protection devices, effectively ensure the safety of equipment.
characteristic:
1. Large-scale simulation environment humidity and heat laboratory can provide large parts, semi-finished products, finished products for temperature and humidity environment testing, which is mainly composed of control panel, distribution panel, insulation board, blower, heater, humidifier, refrigerator, the main specifications are divided into seven standard indoor sizes and 28 different conditions of the test specifications.
2. Horizontal diffusion vertical heat exchange circulation system with centrifugal air supply is adopted to avoid dead corners and uniform indoor temperature and humidity distribution.
3. The IPC1000 controller can be connected to the computer through the RS 232 interface. Users can design programs on the computer, collect test data and records, call program execution, remote control machine switch on and off and other functions.
4. When an exception occurs, the controller screen displays the fault in a timely manner, turns off the power switch, and provides troubleshooting methods.
5. The refrigerating machine adopts the original compressor imported from Europe and the United States, and uses environmental refrigerant. The freezing system adopts the design of binary cryogenic loop system, and uses different compressors for work in different temperature domains to increase the service life of the equipment.
Parameter:
Temperature | Temperature control range |
-70℃~180℃ (A:0℃~180℃;B:-20℃~180℃;C:-40℃~180℃;D:-70℃~180℃) |
||||||
Temperature fluctuation | ±0.5℃ | |||||||
Cooling rate | 180.0℃~-70.0℃ Within 100 mins 1.0~3.0℃/min |
|||||||
Heating rate | -70.0℃~180.0℃ Within 60 mins 3.0~5.0℃/min |
|||||||
Temperature uniformity | ±1.5℃ (-40.0℃~100.0℃) | |||||||
±2.0℃ (100.1℃~180.0℃or-40.0℃~-70.0℃) | ||||||||
Humidity | Humidity control range | 10.0%RH~98.0%RH (60℃ above corresponds to 10%RH) | ||||||
Humidity fluctuation | ±1.0% RH | |||||||
Humidity uniformity | ±2.0%RH | |||||||
Material / components |
Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | ||||||
External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | |||||||
Heat insulating material | 100mm thickness polyurethane plate+10mm thickness mineral wool | |||||||
Fan | Centrifugal blower | |||||||
Compressor | Semi-closed Germany Bock, Germany Bitzer | |||||||
Condenser | Air cooling, water cooling | |||||||
Refrigerant | R404A,R23,R508 | |||||||
Evaporator | Fin - and - Tube Heat Exchanger | |||||||
Heater | Nickel chromium alloy heating wire | |||||||
Humidifier | Steam humidifier | |||||||
Options | Standard configuration | 2 ∅100MM pressure relief port, 4 explosion-prood chains | ||||||
Multipoint temperature monitor |
Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | |||||||
C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | |||||||
C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | |||||||
Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally |
FQA:
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your
requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,
Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
