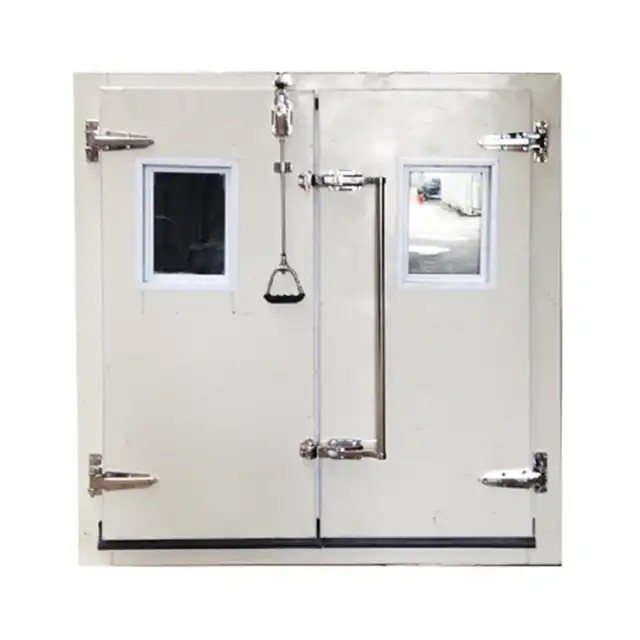

Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer

Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer
Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer

Large Image :  Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Climatic Test Chamber
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 10-60days after confirmed payment or by contract stipulation
Payment Terms: L/C, T/T
Supply Ability: 100 Set / Sets per Month

Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer

Description
Warranty: 1 ~ 3 Years Place Of Origin: Guangdong, China
Temperature Cooling Speed: 1degree ~ 20 Degree Per Min, Customized Temp Analytic Accuracy/ Uniformity: 0.1℃/±2.0℃
Customized Support: OEM, ODM Power: Electronic
Temperature Range: -40℃~+150℃ Humidity Range: 10%~98%R.H
High Light:

ODM Walk In Climate Chamber

,

OEM Environmental Test Chamber With Slope

Safety Assurance Walk-In Climate Laboratory With Slope Safety Hammer



product presentation:

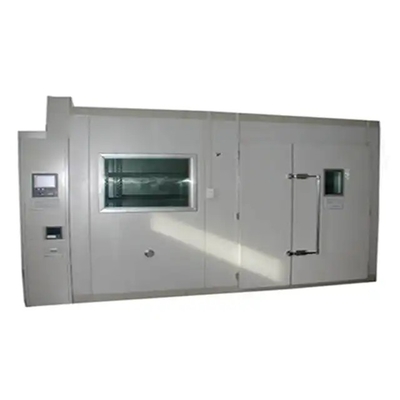

The walk-in climate simulation test chamber is specially developed for large test products that cannot be tested in the standard size test chamber. Using this walk-in climate simulation test chamber, various temperature and humidity tests can be carried out in the fields of research and development, production and quality control, and also efficient and homogeneous temperature and humidity regulation can be carried out in the test chamber to achieve constant temperature and humidity. And the test results are guaranteed to be reproducible regardless of the shape and type of the test sample. In addition, it can accurately control the airflow according to the set temperature and humidity setting values, to ensure that the airflow in the whole test box is constant and consistent.



characteristic:



1, split plate structure, with high strength, easy to disassemble and assemble characteristics;



2, hollow coating electric heating glass, low temperature non coagulation cream; Dry air air circulation system, effectively prevent the temperature cycle test product condensation;



3, the use of LCD LCD touch screen, industrial man-machine interface, waterproof, vibration resistance, automatic system control, effectively solve the operator training difficult problem, when the equipment failure, the LCD interface will have the corresponding fault prompt, convenient maintenance;



4, refrigeration compressor and key parts are imported from international famous brand, long-term reliable operation, environmental refrigerant refrigeration, in line with the requirements of international environmental protection conventions;



5, a variety of optional accessories: RS232/485 communication interface, recording and printing instrument, remote temperature control system (including printer, communication software, computer, etc.)

Production specification



Model GA-HS-80 GA-HS-150 GA-HS-225 GA-HS-408 GA-HS-800 GA-HS-1000
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (Low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) (High:+100℃/+150℃)
Humidity range 10%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/ uniformity 0.1℃/±2.0℃
Temperature Fluctuation ±0.5℃
Humidity analytic accuracy/ Humidity control accuracy ±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials

SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint

for outer

Insulation materials

Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation

materials

Cooling system

Air cooling/single segment compressor(-40°C) ,air and water double segment

compressor (-50°C~-70°C)

Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection

switch,super humidity over-temperature protection switch, fuse, failure warning system

Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France“Tecumseh”brand
Controller TEMI South Korea
Power AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580



Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer 0

Laboratory Safety Assurance Walk In Climate Chamber With Slope Safety Hammer 1



FAQ:

Q 1: Are you manufacturer?

A: Yes, we are manufacturer with more than 10 years' experience.

Q 2: What are your Price Terms?

A : Price can be based on FOB, CFR, or CIF, etc.

Q 3: What are your Payment Terms?

A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.

Q4: What's your Minimum Order Quantity?

A: Any order quantity is warmly welcomed.

Q 5: Do you have English Manual for each machinery?

A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.

Q 6: Can I print my Logo on the machine?

A: Yes, sure.

Q 7: Can you customize the machine for me ?

A: Yes, we can customize according to customer's requirements.

Q 8: What shall we do if breakdown occurs?

A: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the

notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s

requirements.

Q 9: What are your modes of transportation?

A: Courier service, Air transport, Sea Transport.

Q 10: Which ports do you usually ship at?

A: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.

Q11: Do you support overseas installtion and debugging?

A: Yes, normally We will despatch a profesional team with translater to the field to complete the whole project.

Q12: If any breakdown, do you have any prompt ways to support us?

A: Yes, we have on-line services to make one-one explanation.
