Product Details:
|
| Warranty: | 1 Year | Humidity Range: | 20%-98%R.H |
|---|---|---|---|
| Resolution: | ±0.1°C, ±0.1%RH / ±1°C, ±3%RH | Refrigerant: | R23/R404A |
| Certificate: | CE | Power: | Electronic |
| Brand: | GSKA | Place Of Origin: | Donggaun,china |
| High Light: | R404A Temperature Cycling Chamber,1540L Climatic Test Chamber |
||

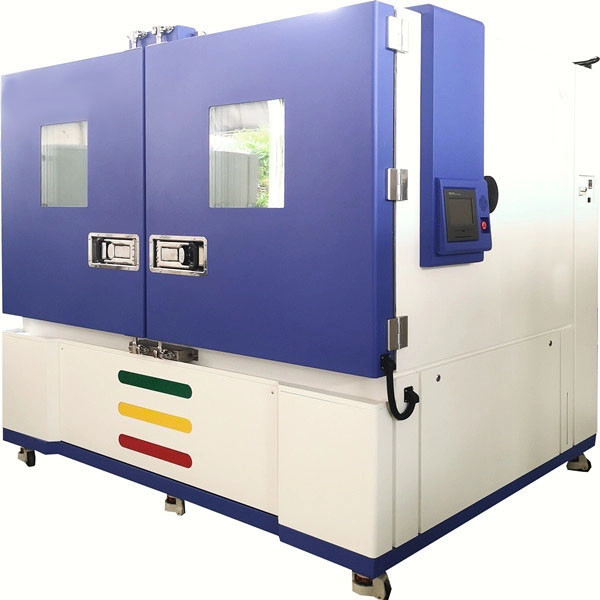

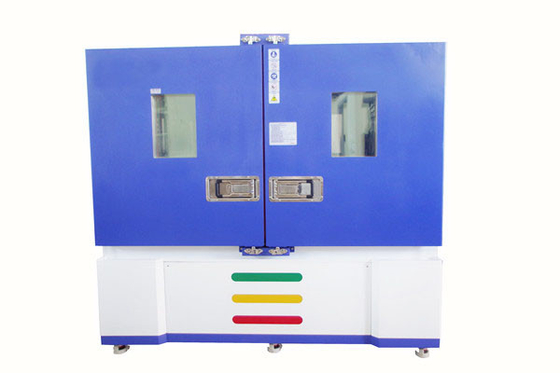

Climate And Temperature Cycling Test Chamber , 1540L Climatic Test Chamber
Temperature and humidity test chamber can also be called environmental test chamber or constant temperature and humidity chamber, constant temperature and humidity test chamber. The machine adopts high stability platinum PT-100 temperature resistant body, LCD Chinese and English touch screen/touch screen, with multiple groups of PID control function, equipped with RS-232C/485C and computer interface control, can simulate high temperature and high humidity/high temperature and low humidity/low temperature/high temperature/low temperature and other different environmental conditions. More with easy to operate and learn high accuracy programming control and fixed point control system, to provide the best test performance.
Product Usage:
Widely used in the industry of electronic appliances, military, plastic, hardware, chemical and other industries, such as: electronic parts, auto parts, notebook and other products virtual climate environment test.
This series of temperature and humidity test box can simulate a variety of temperature and humidity environment, suitable for testing electronics, electrical appliances, food, automobile, rubber, plastic glue, metal and other products, meet the GB/T2423, GJB150A1/4 all kinds of harsh environment reliability machine stability performance parameters, will provide you with prediction and improvement of product quality and reliability basis.
| Temp. range | -70℃～＋180℃ |
Note:
1. Test with no load, meeting GB/T5170-2008, if no other special notice.
2. Ambient Temp 25℃, good ventilation condition: function well if 35℃≥RT＞25℃;Cool down rate and thermal load capacity will be affected by ambient low temperature. |
| Temp Fluctuation | ±0.1℃～±0.5℃ | |
| Temperature Uniformity | ±0.5℃～±2.0℃ | |
| Temp Deviation | ＜±2℃ | |
| Heat up Time | ＜45min(R.T→＋180℃) | |
| Cool down Time | ＜90min(R.T→-70℃) | |
| Humidity Test |
Temp. Range: ＋10℃～＋95℃ Humid. Range: 10%RH～98%RH Humid. Fluctuation: ±1.0%RH～±3.0%RH Humid. Uniformity ±1.0%RH～±5.0%RH Humid. Deviation: ±1.0%RH～±5.0%RH Temperature gradient: < 2.0 ℃ Humidity gradient: < 5.0%RH |
|
|
Test Standards
|
1.GB/T 2423.1 (Low Temp. Test) | 5.GJB 150.3 (High Temp. Test) |
| 2.GB/T 2423.2 (High Temp. Test) | 6.GJB 150.4 (Low Temp. Test) | |
| 3.GB/T2423.34 (Climate Cycling Test) | 7.GJB 150.9 (Climate Test) | |
| 4.IEC60068-2 (Climate Test) | 8.MIL-STD-202G-103B (Humid Test) | |
| Load thermal capacity graph | In temperature test, the thermal capacity for loading varies from different temperature value | |
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:-Yes, we are manufacturer
Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can
send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send
you new spare parts or provide on-site repair.
2. What’s the delivery term?
A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national
authoritative third-party inspection agency.
5.what about the packing of equipment?
A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the
foam.
