Product Details:
|
| Warranty: | 1 Year | Humidity Range: | 20%-98%R.H |
|---|---|---|---|
| Customized Support: | OEM, ODM | Power Supply: | AC380V 50HZ |
| Temperature Range: | -70~180 | Power: | Electronic |
| Humidity Deviation: | ± 2.5% RH | Place Of Origin: | Donggaun,china |
| High Light: | AC380V Climatic Test Chamber,50HZ Climatic Chamber |
||

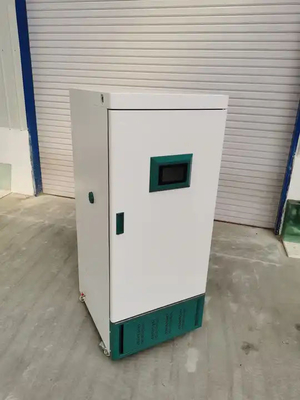

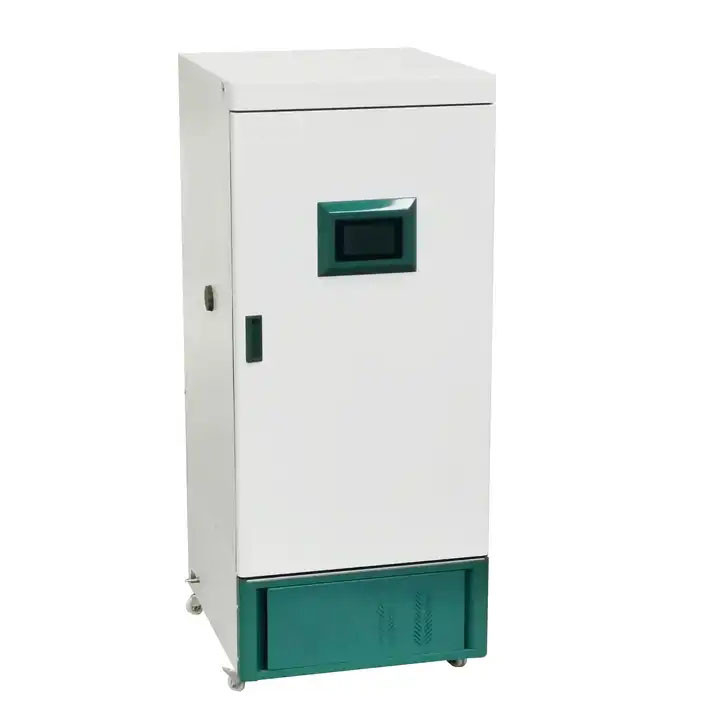

GA Series AC380V 50HZ Climatic Test Chamber High And Low Temperature
Product features:
1. Ventilation dry and wet table and the whole machine should be integrated as a whole, it can not be attached by the user at will, this is because the ventilation dry and wet table has strict wind speed requirements, the wind speed is different from the temperature and humidity test box, it can only be installed in special parts.
2. The surface escape method is used for humidification, in which water molecules are added into the air, the humidification surface is large, the release is stable, the humidity fluctuation is small and the distribution is uniform; If the use of ultrasonic or steam humidification, add is small water droplets, that is, add water rather than real humidity, humidification surface is small, impact is large, humidity fluctuation and uneven distribution.
3. The suspended measured items do not need additional fixing and will not swing. Once they swing, there will be reading difficulties and collision problems.
4. The measured items will not block each other. If there is a block, the equipment can only meet the indicators in the empty box test, but the evenness index is very poor in actual use.
5. The cooling parts of the equipment can not be condensation or icing, the longer the time, the more icing, and finally all the blockage, air can not pass, air circulation performance decline resulting in a decline in control quality.
| Model | GSA4008 | GSA4100 | ||
| Test Space Volume(L) | 80 | 1000 | ||
| Temperature Range(℃) | -40/180 | -70/180 | -40/180 | -70/180 |
| Temperature Constancy (℃) | ±0.1- ±0.5 | |||
| Temperature Homogeneity (℃) | ±0.1- ±2.0 | |||
| Heating Rate (℃/min) | 3.3 | 3.3 | 3.2 | 3.5 |
| Cooling Rate (℃/min) | 3 | 2.7 | 2.5 | 2.3 |
| Test Space Dimension(mm) | 400W*400D*500H | 1100W*950D*950H | ||
| External Dimension(MM) | 650W*1000D*1750H | 1390W*2155D*1995H | ||
| Max. Specimen Weight(kg) | 5 | 100 | ||
| Cooling Methods | Air-Cooled | |||
| Options | Standard Version |
| ★ Independent sensors for specimen protection (NE60519-2.1993) | ★ 2 Silicon stoppers for entry ports |
| ★ 1 Entryport Φ100mm | ★ 2 Stainless steel shelves |
| ★ Drier filter for compressing air | ★ 3 Power outlets for specimens |
| ★ Nitrogen gas auxiliary device | ★ Left and right entry ports Φ50mm |
| ★ Air-Cooled unit | |
| ★ Spare parts package | |
| ★ E-management and cyber-software | |
| ★ Video monitor system | |
| ★ APP for mobility management |
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:-Yes, we are manufacturer
Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can
send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send
you new spare parts or provide on-site repair.
2. What’s the delivery term?
A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national
authoritative third-party inspection agency.
5.what about the packing of equipment?
A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the
foam.
