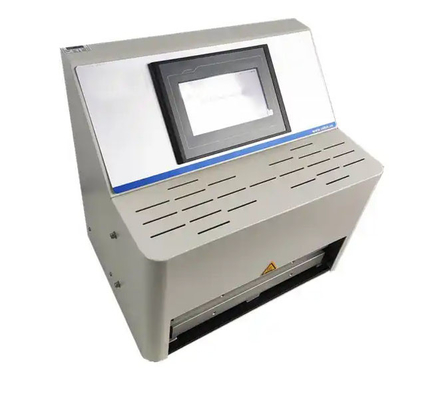

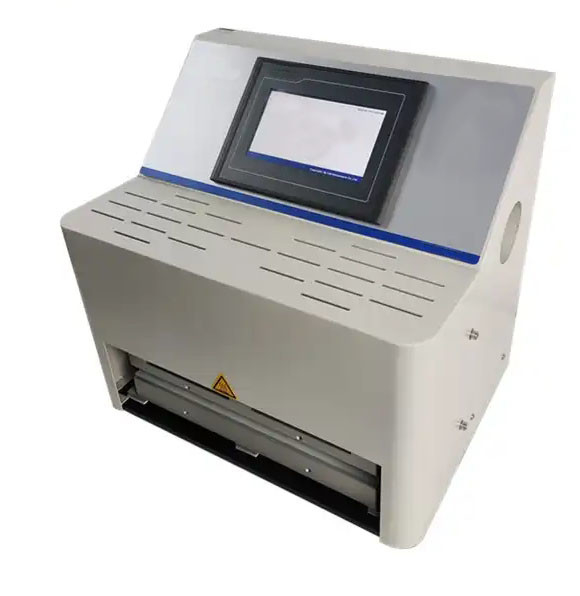

PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment

PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment
PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment

Large Image :  PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA89H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment

Description
Warranty: 1 Year Place Of Origin: Donggaun,china
Brand: Cell Instruments Test Samples: Flim,sheet, Polymer
Sealing Time: 0.1s~9999s Accuracy: ±0.2℃
Power Supply: AC 220V 50Hz Temp Range: Room Temp. ~ 300℃
High Light:

PE Breathable Film Heat Seal Tester

,

PVC Hard Sheet Heat Seal Tester

PE Breathable Film Heat Seal Tester PVC Hard Sheet Heat Seal Test Equipment



Product introduction:



Heat sealing tester is suitable for all kinds of plastic film, plastic composite film, paper and plastic composite film, co-extrusion film, aluminum plating film, aluminum foil, aluminum foil composite film and other film like heat sealing test, the hot cover is smooth plane, heat sealing width can be designed according to the needs of users, but also can carry out a variety of plastic hose sealing experiment.



The hot sealing tester uses the hot pressing sealing method to measure the hot sealing temperature, hot sealing time, hot sealing pressure and other parameters of the plastic film substrate, flexible packaging composite film, coated paper and other hot sealing composite film. Heat sealing material with different melting point, thermal stability, fluidity and thickness will show different heat sealing performance, and its sealing process parameters may be very different. Heat sealing tester, through its standardized design and standardized operation, can obtain accurate heat sealing test index, and then guide large-scale industrial production.

Sealing Temperature
Ambient~300℃
Temp Accuracy
±0.2℃
Heat Seal Time
0.1~9999s
Sealing Jaws
330mmx10mm Tf Coated
Sealing Pressure
0.15MPa~0.7MPa
Control
PLC and HMI touch screen
Gas Pressure
0.7 MPa
Port Size
Ф6 mm PU Hose
Power
220V, 50Hz
Dimensions
455*320*440mm (LWH)



PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment 0

PE Breathable Film Heat Seal Tester , PVC Hard Sheet Heat Seal Test Equipment 1



FQA:



Q1: How long is the delivery time?


A:Normally 15-30 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.

Q2: What is the warranty for the equipment?



A: One year. We can provide you lifelong technical support.

Q3: What is the payment terms?



A: T/T, L/C, Western Union, etc

Q4: How about the products quality?



A: Our products apply to ISO, ASTM, GB, etc

Q5: Is it OK to print my logo on machine product?



A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


or 100% L/C at sight .

Q7: Can we test sample before place order?



A: Of course,we can test sample and provide test report to you with free.
