Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Load Capacity: | 200kg | Operating Mode: | Touch Screen Operation |
| Servo Drivers: | AC Drive | Fixture Configuration: | Stretching Jig Set |
| Size: | 500*500*1240mm | Control Motor: | AC Servo Motor |
| High Light: | 300mm/min Universal Testing Machine,AC Servo Motor Universal Testing Machine,200kg Tensile Testing Machines |
||

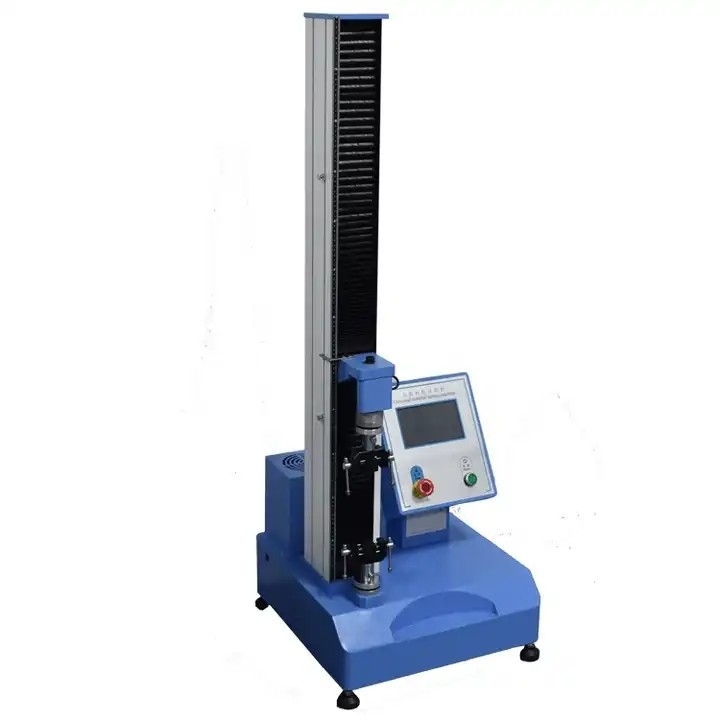

Single Column Universal Testing Machine Load Capacity 200kg
product presentation:
Universal tensile strength testing machine mainly uses servo motor as the power source, screw, wire as the executive parts, to achieve the speed control of the tester moving beam. In the transmission control, there are two main forms, synchronous belt and reducer. Its advantages and disadvantages are still to be discussed, but they do not affect the use of users. Load sensors are used in tensile strength testing machines. In the transmission control, there are two main forms, synchronous belt and reducer. Its advantages and disadvantages are still to be discussed, but they do not affect the use of users. Load sensors are used in tensile strength testing machines.
This product tests the tensile strength, compressive strength and elongation of various materials, semi-finished products and finished products. It can be used for peeling, tearing, bending, bending, compression and other tests. It is suitable for metal, plastics, rubber, textiles, synthetic chemicals, wire and cable, leather and other industries.
|
Capacity
|
5, 10, 20, 25,50, 100, 200kg
|
|
Unit Switching
|
kg, N, LB
|
|
Load Reresolution
|
1/250,00
|
|
Load Accuracy
|
≤0.25%
|
|
Maximum Stroke
|
1000mm
|
|
Test Speed
|
30~300mm/min
|
|
Displacement Resolution
|
0.01 mm
|
|
Motor
|
AC Motor
|
|
Profile Size
|
500mm*500mm*1240mm
|
|
Weight
|
80KG
|
|
Power Supply
|
1$,220V, 15A
|
|
Distribution
|
Tension Jig Set
|
|
Display Unit
|
LCD Screen
|
