Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Load Capacity: | 110kg | Power Supply: | 400W |
| Measuring Range: | 1N-500N | Control Mode: | Micro-computer |
| Power: | Electronic | Size: | 410*430*1550mm |
| High Light: | Microcomputer Tensile Strength Testing Machine,400W Tensile Strength Testing Machine,500N Tensile Testing Machines |
||

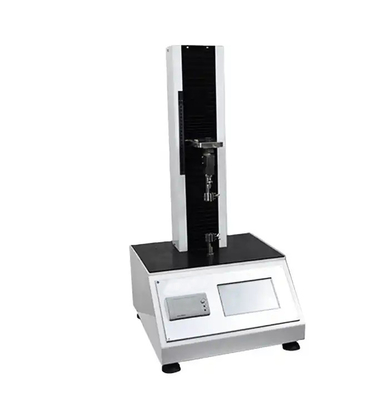

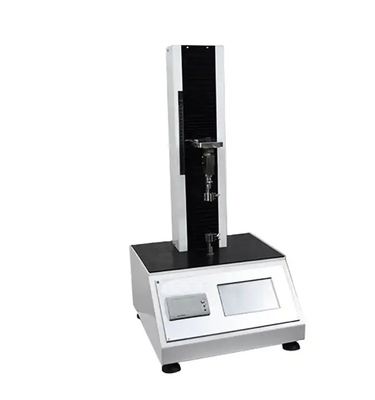

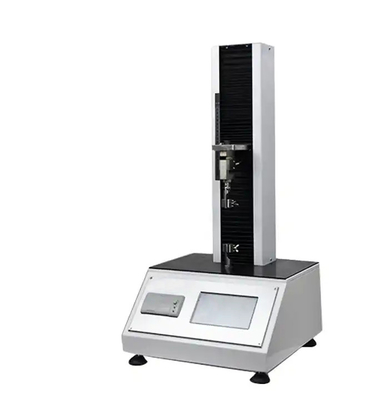

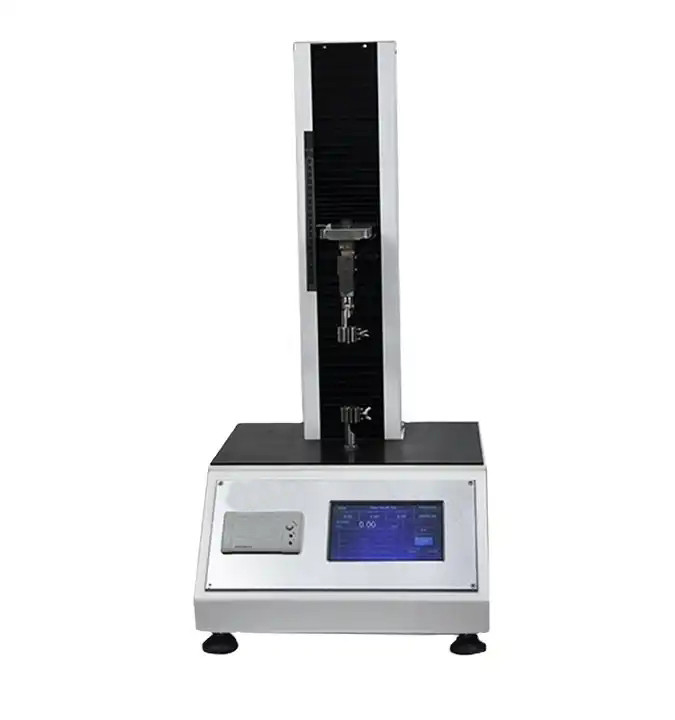

CE Certified Universal Tensile Strength Testing Machine Measuring Range 1N-500N
product presentation:
This product tests the tensile strength, compressive strength and elongation of various materials, semi-finished products and finished products. It can be used for peeling, tearing, bending, bending, compression and other tests. It is suitable for metal, plastics, rubber, textiles, synthetic chemicals, wire and cable, leather and other industries.
Feature:
1) Color touch screen display.
2)The test force can be adjusted in a wide range, stable and effectively.
3) Display test force, test speed and displacement at real time.
4) It can automatically return to the original position after test.
5) With limit position protection, over load protection and over current protect.
6). Equipped with mini printer, test report can be printed out
Technical parameter:
| Max test force | 500N |
| Precision of the equipment | 1% |
| Measuring range | 1N-500N |
| Relative error of indicating value | 1% |
| Resolution of test force | 1/200000 |
| Min reading value of deformation | 0.01mm |
| Speed range | 1-500mm/min |
| Stroke of crossbeam | 400mm |
| Loading mode | Electrically |
| Control mode | Micro-computer |
| Voltage (should connect to the ground) | AC 220V 50Hz |
| Power | 400W |
| Dimension of main machine | 410X430X1550mm |
| Weight |
|
