Product Details:
|
| Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-54WT | Capacity: | 10, 20, 50, 100, 200Kg |
| Accurate Grade: | 0.5grade | Usage: | Universal Testing Machine |
| Power: | Electronic | Effective Accuracy: | ±0.2% (0.5grade) |
| High Light: | 200Kg Electronic Tensile Testing Machine,100kg Electronic Tensile Testing Machine,Peel Adhesion Tensile Testing Machines |
||

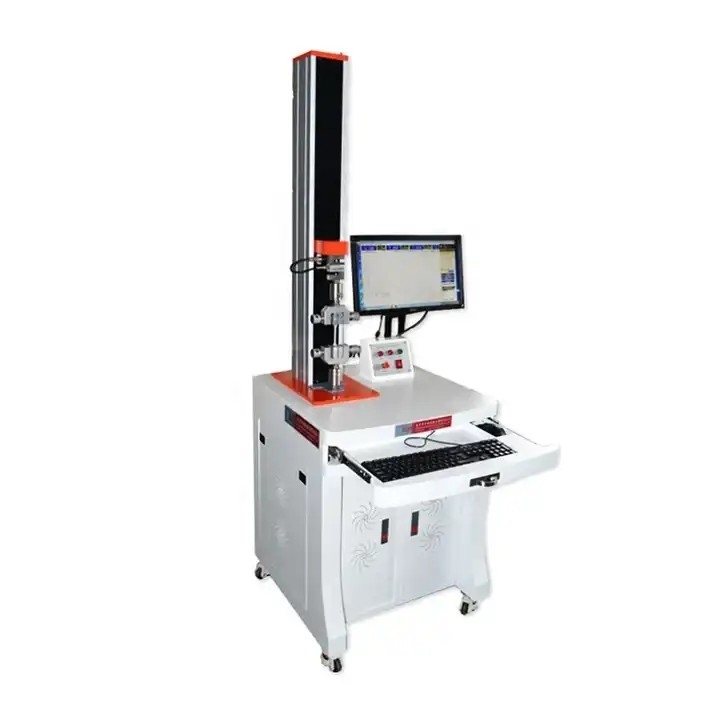

Computer Controlled Electronic Tensile Testing Machine For Peel Adhesion Testing
product presentation:
The servo universal materials tensile tester is applied to all kinds of hardware, metal, rubber and plastic materials, shoes, leather, clothe,textiles, yarns, an insulator, wire and cable, for many kinds of materials. It tests every items physical test performance. For example tear, strip, anti-pressure, bending, shearing force, peeling, tensile strength, laceration, adhesion force, three / four point bending, compression etc.
Theory:
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it
operates easily.
2. Using a single-screen operation; do not need to switch the screen
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily
4. The pattern of Test reports can be self designated; test data can be displayed directly in the main screen.
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics
Speficiations:
| Items | Servo Universal Tensile Testing Machine |
| Capacity | 10, 20, 50, 100, 200Kg (Optional) |
| Unit | G, KG, N, LB can be exchanged |
| Accurate Grade | 0.5grade |
| Display Device | PC |
| Resolution | 1/250,000 |
| Effective Accuracy | ±0.2% (0.5grade) |
| Max.Stroke | 600mm |
| Speed Range | 0.01-500mm/min (or customize ) |
| Motor | Servo Motor + High Precise Ball Screw |
|
Elongation Accuracy
|
0.001mm |
| Power | AC220V, 50/60HZ (Or custom-made) |
|
Standard Accessories |
Tensile clamp, Computer system, English software CD,
User manual |
