Product Details:
|
| Warranty: | 1 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-214WT | Power: | Electronic |
| Max. Test Force: | 50kN | Display: | LCD Display |
| Structure: | Door Type Structure | Effective Accuracy: | ±0.2% (0.5grade) |
| High Light: | LCD Display Tensile Compression Testing Machine,Universal Tensile Compression Testing Machine,50KN Tensile Testing Machines |
||

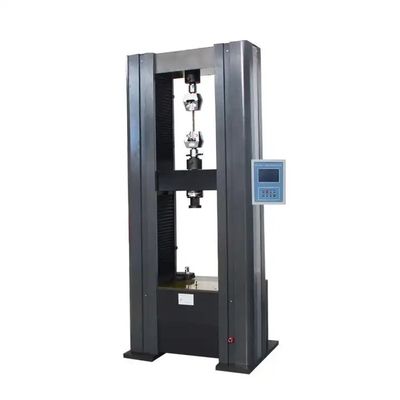

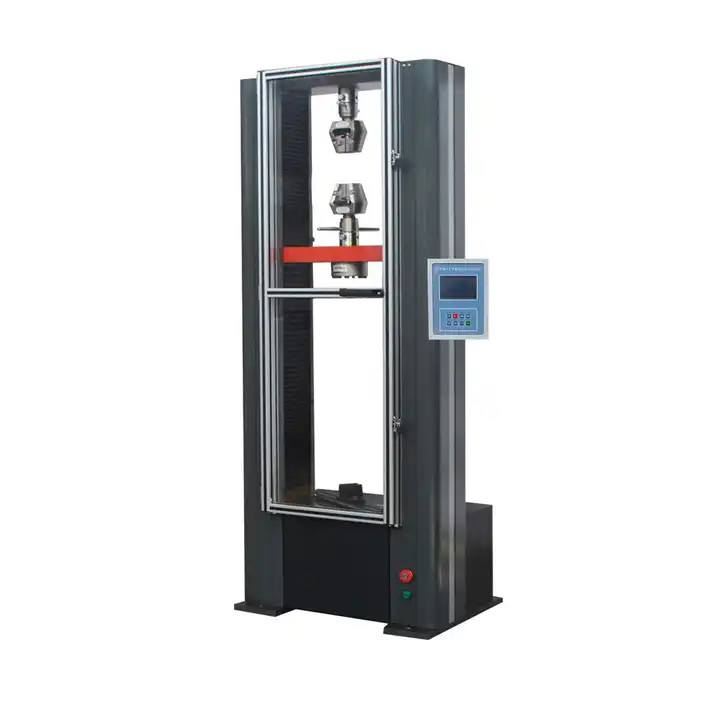

Universal Tensile Compression Testing Machine LCD Display, Test Force 50KN
product presentation:
Features:
1. crossbeam and worktable form a high rigidity frame.High precision ball driver under the servo motor control to adjust the space and test loading.
2. Adopt servo motor to drive the ball screw and ball screw drive the crossbeam up and down moving.This test equipment not only can finish the low-speed brittle materials test such as glass and carbon rods but also can finish super-deformation plastic material test.
3. Simple connection.Has variety of clamping way and thousands of test fixtures.Clamping way”leveraged type;screw tight type;hydraulic type;pneumatic type;eccentric wheel type;latch type;self-locking type;compression type and so on.
4. Large test space,convent to add other test decive such as environment box,high temperature furnace and large deformation extensometer.Also can configure miltiple load cell to cover more range.
5. No need to add hydraulic oil,environmental protection and pollution-free green equipment.
|
Model
|
GS-214WT
|
GS-215WT |
GS-216WT
|
|
Max. Test force
|
10kN
|
20kN
|
50kN
|
|
Testing accuracy
|
0.5% FS
|
0.5% FS
|
|
|
Accuracy of indication
|
≤0.5％
|
≤0.5％
|
|
|
Measurement range
|
1％－100％FS
|
1％－100％FS
|
|
|
Extensometer testing range
|
1%--100%FS
|
1%--100%FS
|
|
|
Accuracy of extensometer
|
≤0.5％
|
≤0.5％
|
|
|
Force control rate range
|
0.005-0.5FS/S
|
0.005-0.5FS/S
|
|
|
Force control rate accuracy
|
Rate＜0.05%FS/s,≤±1%,
Rate≥0.05%FS/s,≤±0.5%；
|
||
|
Strain control rate range
|
0.005-0.5FS/S
|
0.005-0.5FS/S
|
|
|
Strain control rate accuracy
|
Rate＜0.05%FS/s,≤±1%,
Rate≥0.05%FS/s,≤±0.5%；
|
||
|
Displacement Accuracy
|
≤0.5％
|
||
|
Moving range of Crossbeam
|
800mm
|
900mm
|
|
|
Speed of Crossbeam
|
0.001～500
|
0.001～500
|
|
|
Effective test space
|
370
|
475
|
|
|
Max.stretching space
|
800mm
|
700mm
|
|
|
Max.compression space
|
1100mm
|
1100mm
|
|
|
Clamping range of circular specimens
|
Φ4～Φ20mm
|
Φ4～Φ20mm
|
|
|
Clamping thickness of plate specimens
|
0～20mm
|
0～20mm
|
|
