Product Details:
|
| Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-254WT | Power: | Electronic |
| Capacity: | 100, 300, 500, 1000, 2000KG | Test Speed: | 0.1-500mm/min (adjustable ) |
| Motor: | Panasonic Servo Motor | Max. Stroke: | 1000mm (excluding Fixture) |
| High Light: | 500mm/min Tensile Compression Testing Machine,1000mm Tensile Compression Testing Machine,Microcomputer Control Tensile Testing Machines |
||

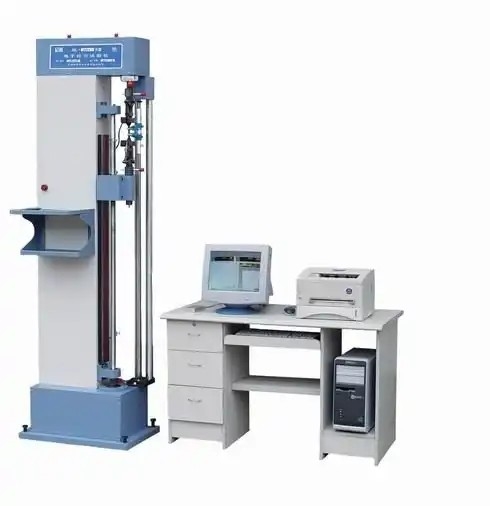

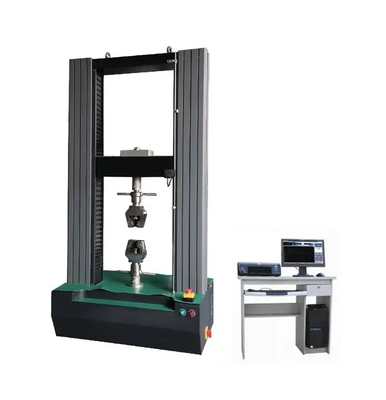

Double Column Universal Tensile Compression Testing Machine Microcomputer Control
product presentation:
Universal Testing Machine (UTM) is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform many different varieties of tests on an equally diverse range of materials, components, and structures. Most UTM models are modular, and can be adapted to fit the customer’s needs.
Universal Testing Machines can accommodate many kinds of materials, ranging from hard samples, such as metals and concrete, to flexible samples, such as rubber and textiles. This diversity makes the Universal Testing Machine equally applicable to virtually any manufacturing industry.
Different models of Universal Testing Machines have different load capacities, some as low as 2 kN and others as high as 2,000 kN.
advantages:
Precision reducers, ball screws which significantly reduce the noise and transmission losses while increasing the transmission efficiency.
2 Years Warranty
The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
Load cell has memory lock function which memorizes various parameters.
Plug and play load cell.
When using the external I/O signal contact various functions can be expanded.
Jog control and very easy for operation of machine
Many relevant tests can be performed with optional grips and extensometer of fixtures
| Tensile Testing Machine Type:GS-254WT | |
| Sensor | Celtron load cell |
| Capacity | 500, 1000, 2000KG |
| Unit Switchover | 0.1°C |
| Display Device | PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1000mm (excluding fixture) |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | 1 ø ,AC220V, 50HZ |
| Weight | Approx.200kg |
