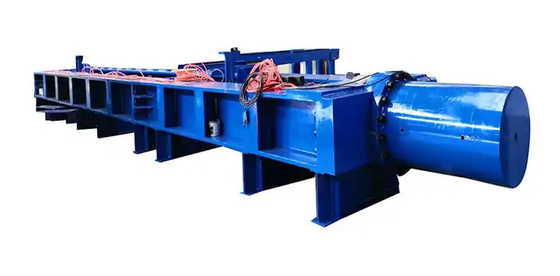

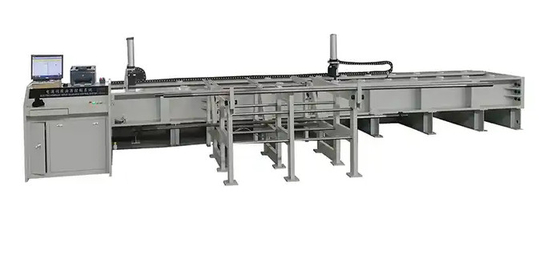

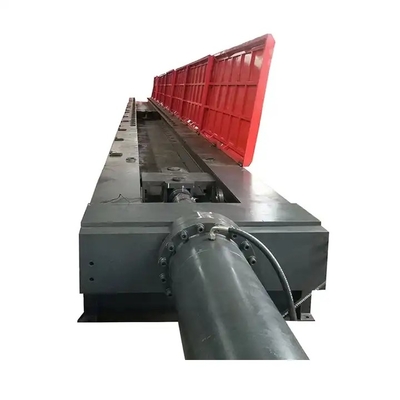

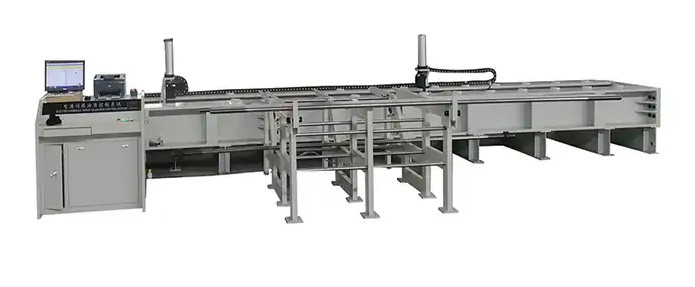

2500KN Horizontal Hydraulic Tension Testing Machine 500mm

XGWL-2500 horizontal tensile testing machine adopts horizontal frame structure, single rod double acting piston cylinder pressurization test force, the computer control system realizes the automatic control of the test process by controlling the servo motor and other parts, and the test data is accurate by the load cell Collect and transmit to the computer, the control system automatically analyzes and processes and stores the test results, and the required test report can be printed directly through the printer. This testing machine is professionally used for expansion and contraction tests of pre-stressed anchor rods. It can automatically measure the total elongation and residual deformation of the anchor rod. The non-proportional elongation stress Rp0.2 (MPa) is specified. An automatic sampling device is also optional. Product online inspection and mass inspection, stress relaxation test is also optional, stress relaxation test is carried out according to EN10319, under the initial prestress of 0.7 times the yield strength, the stress relaxation coefficient of the anchor bolt after 10h is tested, according to the relaxation of the first 100 hours Coefficient deduction and stress relaxation coefficient after anchor bolt 1000h. Ideal test equipment required by modern production and scientific research.
