Product Details:
|
| Warranty: | 1 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-54WT | Measurement Range: | 10-500KN |
| Stretching Velocity: | 0-500(mm/min) | Power: | Electronic |
| Space Of Tension: | 500(mm) | Transmission Mode: | Ball Screw Drive |
| High Light: | Tensile Testing Machine 10KN,PC Control Tensile Testing Machines,500KN Tensile Testing Machines |
||

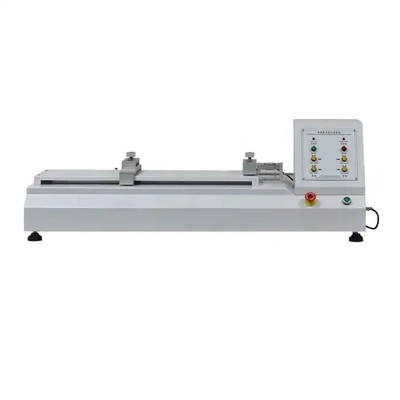

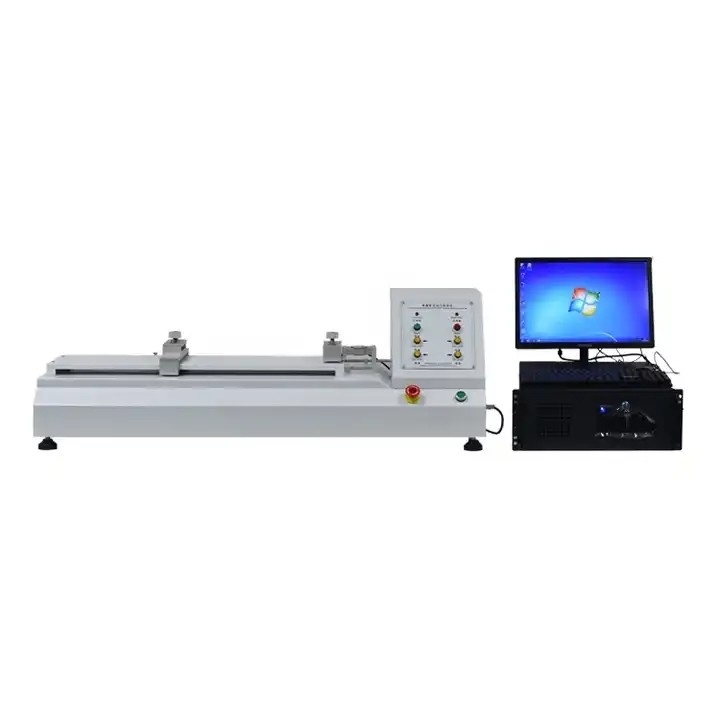

Computer Horizontal Tensile Testing Machine 10-500KN Ball Screw Drive
product presentation:
1. Power indicator: Power on, indicator light on, power off, indicator light off
2. Emergency stop button: in emergency state, press this button to stop the servo operation

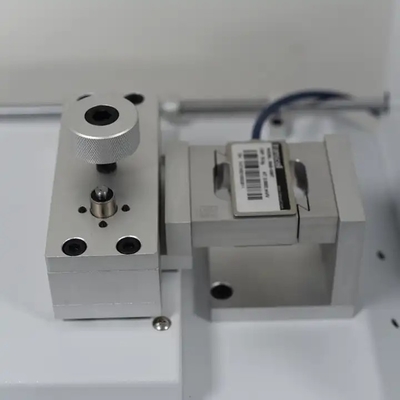

3. Force value sensor
4. Test fixture: used for clamping test samples, can be replaced in accordance with the test requirements
5. limit adjustment: control equipment moving left and right stroke, prevent damaged equipment and sensors
6. left limit: test fixture moving left maximum stroke, prevent damaged equipment and sensors
7. right limit: test fixture moving right maximum stroke
8. Test system control box: there are equipment motherboard, motor driver, air switch and other safety protection devices. (Strictly prohibited)

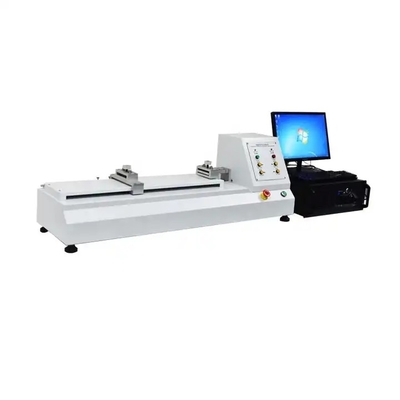

9. computer control: computer host, monitor, keyboard, mouse. It is used to operate the equipment and display test data and curve
10. Left limit indicator light: when the fixture moves to the left limit, this light will be on and the machine will stop or run repeatedly to the right
11. Right limit indicator light: When the fixture moves to the right limit, this light will be onand the machine will stop or run repeatedly to the left
12. Start button: When the device stops running or is suspended, it needs to be retested. Press the start button and the machine will run normally
13. Stop button: When the device is running, the device needs to be paused. Press the pause button to stop the operation of the device
14. Fast left move: when the device is suspended, it is necessary to move the left fixture to the left quickly. Press the fast left move button, and the left fixture will move to the left quickly.
15. Fast right shift: when the device is suspended, it is necessary to move the left fixture to the right quickly. Hold down the fast right shift button, and the left fixture will move to the right quickly.
16. slow to the left: When the device is paused, it is necessary to move the left fixture slowly to the left, and hold left! Move the slow button, the left fixture will move slowly to the left, release the finger will stop moving immediately.
17. right slow: when the device is suspended, it is necessary to move the left fixture slowly to the right, hold down the right slow button, the left fixture will move slowly to the right, release the finger will stop moving immediately.
|
Product name
|
Computer horizontal tensile testing machine
|
|
Maximum test force
|
50kg
|
|
Unit of force
|
N,Kgf,ibf,N,KN
|
|
Test accuracy
|
Class 0.1
|
|
Test stroke
|
500mm without fixture
|
|
Print item
|
Save the data and then print, can be converted to PDF document
|
|
Test speed
|
0-500mm/min computer Settings.
|
|
Shutdown mode
|
Automatically stop when broken
|
|
Control mode
|
PC control
|
|
Power source
|
servomotor
|
|
Transmission mode
|
Ball screw drive
|
|
Host size
|
About 1200*350*400mm
|
|
Display mode
|
Computer all Chinese display, support English, French, Japanese, Russian
|
