Product Details:
|
| Warranty: | 1 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-124WT | Testing Speed: | 15-240mm/min |
| Max. Load: | 10000N | G.W. (kg): | 90kg |
| Advantage: | Factory Directly Sale | Transmission Mode: | Ball Screw Drive |
| High Light: | 10KN Tensile Testing Machine,ROHS Tensile Testing Machine,240mm/min Tensile Testing Machines |
||

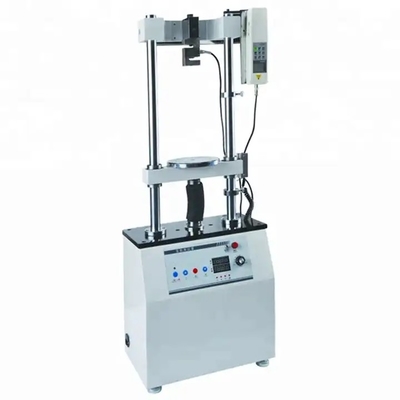

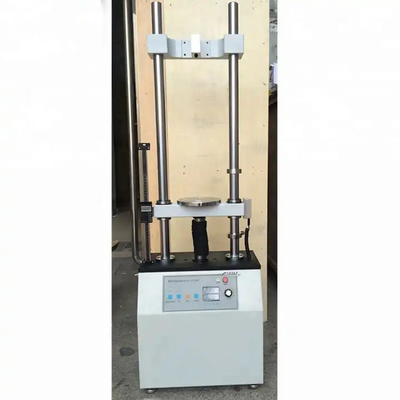

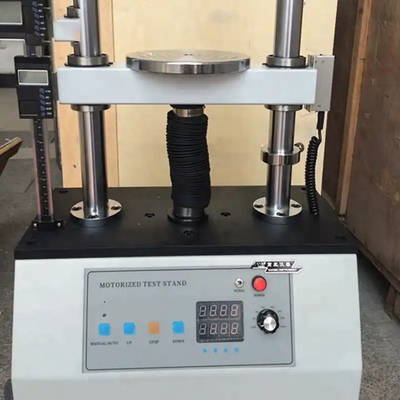

Tensile Testing Machine 10KN Electric Double Column Test Stand For Force Gauge
product presentation:
Electric double column tensile testing machine is a common test equipment, used to test the strength, hardness, toughness and other properties of materials. In order to ensure the normal operation and long-term use of the testing machine, the need for regular maintenance. The following is the double column universal material tension testing machine sex maintenance method:
1. Clean the surface and internal parts of the testing machine. The surface and internal components of the testing machine should be cleaned after each use, especially when testing materials, as impurities and liquids may remain.
2. Lubricate regularly. The friction parts of the testing machine need to be lubricated regularly to ensure smooth operation.
3. Check the sensor and measuring instrument of the testing machine. The sensors and measuring instruments of the testing machine need to be checked regularly to ensure their accuracy and sensitivity.
4. Check the electrical system. The electrical system of the testing machine needs to be checked regularly to ensure that the power lines, switches and fuses are in good condition.
5. Check the fasteners of the testing machine. The fasteners of the testing machine need to be checked regularly to ensure their fastness and stability.
The above is the double column universal material tension testing machine maintenance method, through regular maintenance, can extend the service life of the testing machine, and ensure the accuracy and reliability of the test results.
|
Product name
|
Double Column Vertical Test Stand
|
|
Maximum test force
|
50kg
|
|
Unit of force
|
N,Kgf,ibf,N,KN
|
|
Test accuracy
|
Class 0.1
|
|
Test stroke
|
500mm without fixture
|
|
Print item
|
Save the data and then print, can be converted to PDF document
|
|
Test speed
|
0-500mm/min computer Settings.
|
|
Shutdown mode
|
Automatically stop when broken
|
|
Control mode
|
PC control
|
|
Power source
|
servomotor
|
|
Transmission mode
|
Ball screw drive
|
|
Host size
|
About 1200*350*400mm
|
|
Display mode
|
Computer all Chinese display, support English, French, Japanese, Russian
|
