CE Certification 50KN Universal Material Tensile Testing Machines For Plastics

Large Image : CE Certification 50KN Universal Material Tensile Testing Machines For Plastics

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA-98A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-30working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	300 Set / Sets per Month

Contact Now

CE Certification 50KN Universal Material Tensile Testing Machines For Plastics

Description

Warranty:	1 Year	Place Of Origin:	Guangdong, China
Power Supply:	220V 50Hz	Deformation Range:	1-100%F.S
Compression Test Space:	400mm	Power:	Electronic
Displacement Resolution:	0.01mm	Certificate:	CE SGS ROHS UL
High Light:	CE Certification Tensile Testing Machine , 400mm Tensile Testing Machine , 50KN Universal Material Testing Machine

CE Certification 50KN Universal Material Tensile Testing Machine For Plastics

product presentation of universal material tensile testing machine:

Electronic universal testing machine is mainly used to test and analyze the mechanical property of metal materials such as various copper aluminium alloy products and non-metallic materials such as plastic,rubber, paper,woven bags,wood etc.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.This series is applicable to the mechanical performance test which test load is less than 300kN.

Technical Parameters

Range Parameters	10KN	20KN	50KN	100KN	200KN	300KN
Maximum test force(KN)	10	20	50	100	200	300
Precision grade	1 or 0.5 grade
Test force resolution(KN)	0.001	0.001	0.001	0.01	0.01	0.01
Test force display value resolution	1/300000
Testing force measuring range	1-100%F.S
Deformation range	1-100%F.S
Distortion value error	Within 1% or 0.5% of indicating value (depending on the machine precision level)
Displacement indication error	Within 1% or 0.5% of indicating value (depending on the machine precision level)
Displacement resolution	0.01mm
Effective tensile test space (mm)	650	650	650	550	550	600
Valid test width(mm)	350	350	360	370	400	450
Speed adjustment range	0.01-500mm/min
Power Supply(V/Hz)	220/50	220/50	220/50	220/50	380v/3KW	380v/3KW

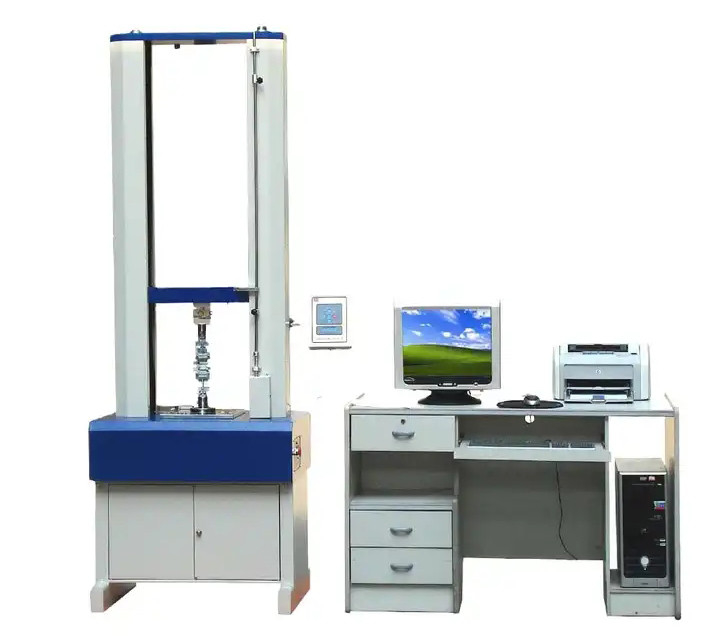

CE Certification 50KN Universal Material Tensile Testing Machines For Plastics 0

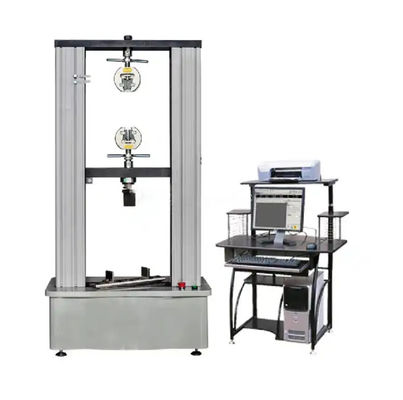

CE Certification 50KN Universal Material Tensile Testing Machines For Plastics 1

FAQ:

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE

maintenance,while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After

confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after

deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put

your logo on the machine.

4. How to install and use the product?

We will send you operating instructions, English video by Email. Or you can download on our officail website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to

use. And if possible, we can also install your machine at site.
