Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model: | GSA-102U | Stroke(exclude The Grips): | 420mm |
| Speed Accuracy: | ≤±0.3% | Load Accuracy: | ≤±0.5% |
| Effective Width: | 200mm | Test Speed: | 0.001 ~ 500mm/min |
| Highlight: | 420mm Tensile Strength Testing Machine,500mm/min Tensile Strength Testing Machine,Stepper Motor Tensile Testing Machines |
||

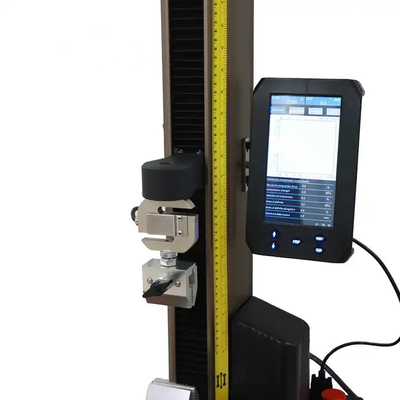

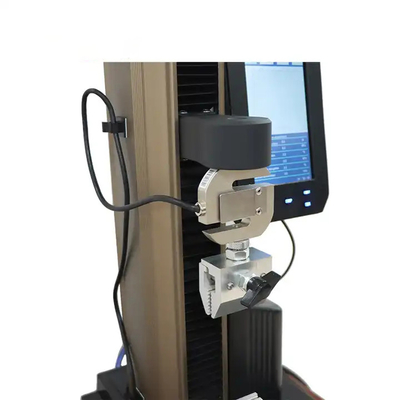

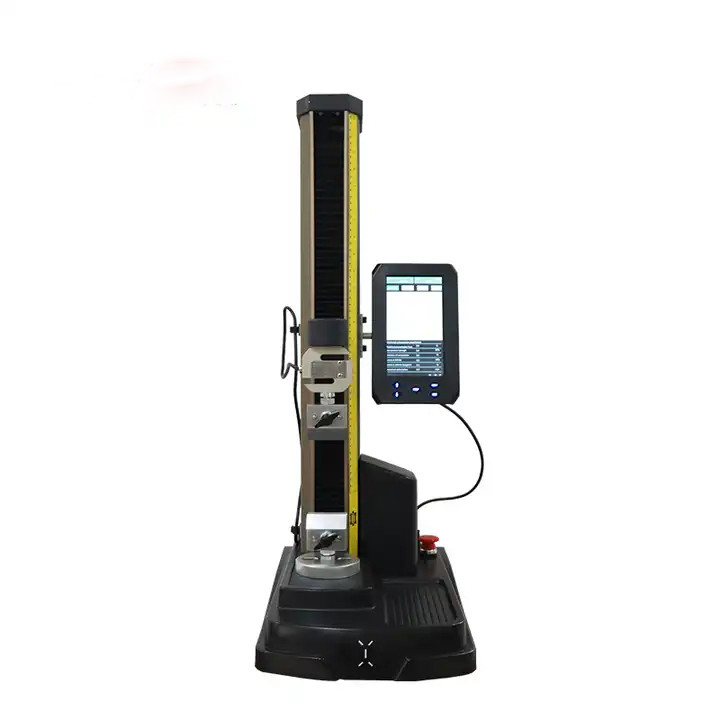

Single Column Electronic Universal Tensile Strength Testing Machine
product presentation:
Universal Tensile Testing Machine GSA-102U tensile tester suits for most kinds of hardware, metal, sealants ,rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials. And our instrument is used for QC control, Basic Research, Physical testing, Mechanics Research, Research teaching& Material Development. Test function:1. The testing process is displayed at the same time with the result of force - displacement, force - time, extensibility rate, etc. You can easily see the stress - strain curve from the screen.2. The flexible and powerful way to customize the test method, with constant speed, position shift, power rates, and given stress. Enabling complex multi-step nested loop control. It can be set to automatic return, automatic judgment fracture, auto-zero function.3. Standardized test process control and report output templates so that you can define as many test standard for users, covering GB, ASTM, DIN, JIS, BS... etc.4. Combining different fixtures and accessories, it can test peel strength, tensile strength, & compress strength.
|
Paramctcr
|
Details
|
|
Product Name
|
Tensile Strength Testing Machine
|
|
Model
|
DH-3000-A5KN
|
|
Capacity(optional)
|
5, 10, 20,50, 100Kg
|
|
Unit(Switchable)
|
Kg lb, N, kN
|
|
Load lRcsolution
|
1/1000001/300000 1/600000 1/1000000
|
|
Load Accuracy
|
≤±0.5%
|
|
Load Magnifying Rate
|
0.25 0.5 0.75 1 或(Or) X1, X2, X5, X10, X20. X50, X100
|
|
Stroke(exclude the grips)
|
420mm
|
|
Effective width
|
200mm
|
|
Test speed
|
0.001 ~ 500mm/min
|
|
Speed Accuracy
|
≤±0.3%
|
|
Stroke Rcsolution
|
0.001mm
|
|
Motor
|
Stepper Motor
|
|
Drive
|
Servo Drive
|
|
Reducer
|
Precision planetary reducer
|
|
Screw
|
Ball screw
|
|
Dimension(Lx WXH)
|
555*400*880
|
|
Weight(approx.)
|
35kg
|
|
Power supply
|
220V,500W
|
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
