Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Control Method: | Computer Control | Load Range: | 2%~100%F·S |
| Resolution Of Deformation: | 0.04um | Power: | Electronic |
| Base Height(mm): | 210 | Certificate: | CE SGS ROHS UL |
| High Light: | Servo Tensile Strength Testing Machine,0.04um Tensile Strength Testing Machine,PC Servo Tensile Testing Machines |
||

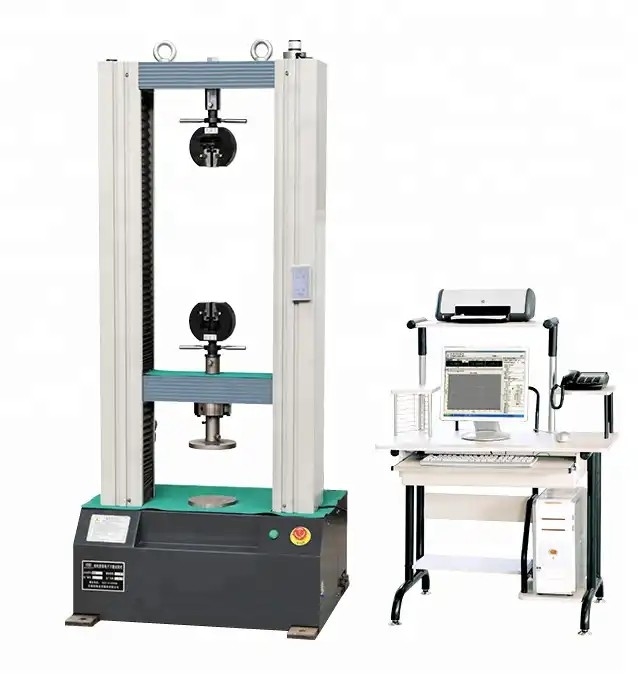

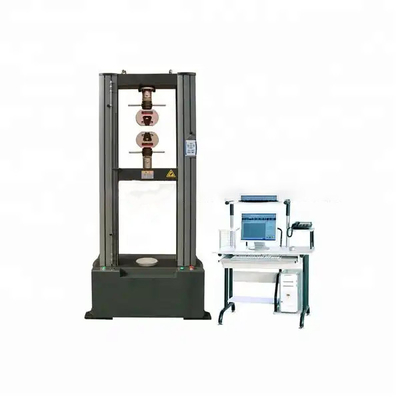

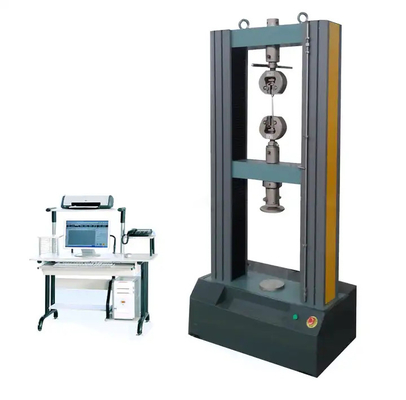

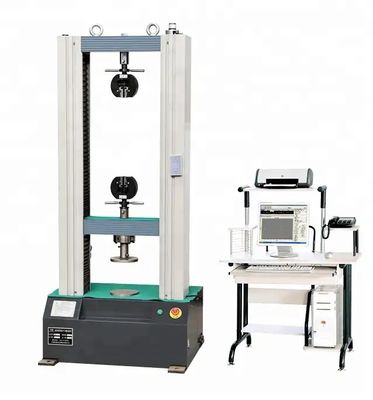

PC Servo Electronic Tensile Strength Testing Machine For Springs, Components
product presentation of tensile strength testing machine :
GSA-135V universal tensile testing machine adopts electromechanical integration design, which is mainly composed of force sensor, transmitter, microprocessor processor, load driver, computer and color inkjet printer. High precision speed regulating motor can set five test speed. Universal tensile testing machine can be used for rubber, plastic, foam materials, plastics, film, flexible packaging, pipe, textile, fiber, nanomaterials, polymer materials, composite materials, synthetic materials, packaging tape, paper, wire and cable elongation test
Specifications with universal tensile testing machine :
| Model | GSA-135V | GSA-136V | GSA-137V | GSA-138V |
| Max. Load(kN) | 10 | 10 | 20 | 20 |
| Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
|||
| Cover | All aluminum alloy | |||
| Control method | Computer control | |||
| Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 |
| Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S |
| Load resolution | 1/300000 | |||
| Rang of deformation | 4%-100%FS | |||
| Resolution of deformation | 0.04um | |||
| Accuracy of displacement | Within±0.5%of indicating load | |||
| Resolution of displacement | 0.01mm | |||
| Test speed(mm/min) | 0.05-1000 stepless arbitrary setting | |||
| Tensile space(mm) | 800(can be customized) | |||
| Compression space(mm) | 800(can be customized) | |||
| Test width(mm) | 400(can be customized) | |||
| Workbench thickness(mm) | 30 | |||
| Base height(mm) | 210 | |||
| Working environment | Room temperature 10℃~30℃,relative humidity≤80% | |||
| Power supply | AC220V±10%,50Hz/60Hz(can be customized) | |||
| Grips | Wedge type, plate type and other grips as consumer’s demand | |||
| Dimension(mm) | 740*420*1720 | |||
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
