Product Details:
|
| Warranty: | 1year | Model: | GSA-652J |
|---|---|---|---|
| Application: | Metal Steel Plastic | Measuring Range: | 1 Or 0.5 Grade |
| Power Supply: | 220V, 50Hz | Hydraulic Universal Testing Machine: | 600kn |
| ATest Force Resolution: | 0.01kn | Brand Name: | GSKA |
| Highlight: | Hydraulic Servo Universal Tensile Testing Machine,Microcomputer Control Universal Tensile Testing Machine,600kn Tensile Testing Machines |
||

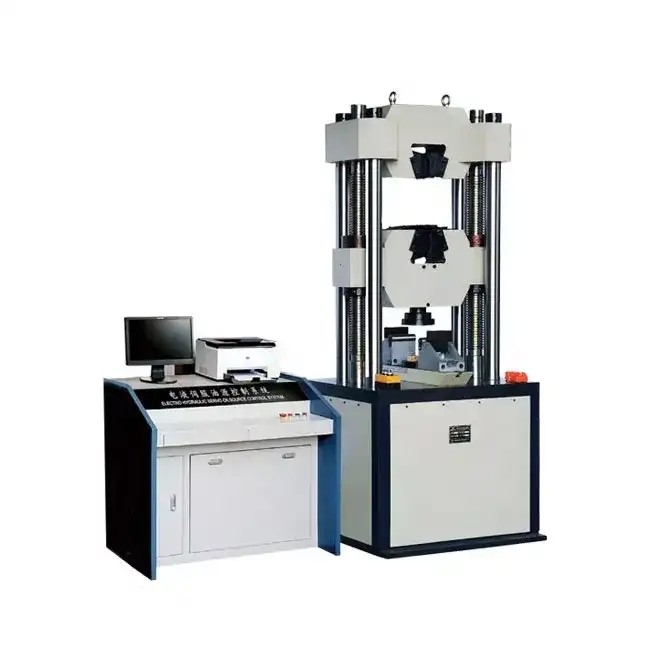

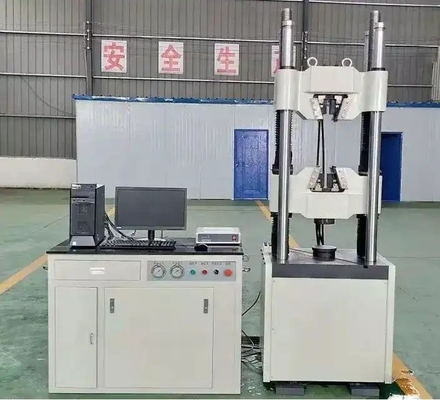

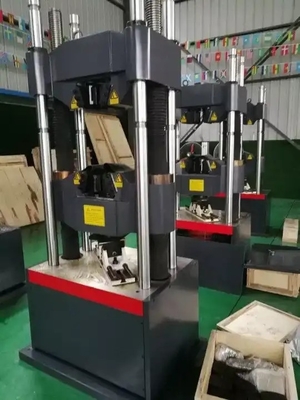

Universal Tensile Testing Machine Hydraulic Servo Microcomputer Control
product presentation with universal tensile testing machine:
Computer Control Hydraulic Universal Tester is mainly used to do stretching, compression and bending testing for metal and nonmetals such as rebar,wire rope,anchor rod,bolt fastener,cable and so on.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.
Technical Parameters
| Model |
GSA-652J |
GSA-653J |
GSA-654J |
| Maximum test force | 300KN | 600KN | 1000KN |
| Measuring range | 1 or 0.5 grade | ||
| Test force resolution | 0.01KN | ||
| Test force indication relative error | ≤±1% | ||
| Deformation precision | ±0.5%F.S | ||
| Piston stroke | 250mm | ||
| Piston max movement speed | 80mm/min | ||
| Stretch space(mm) | 550 | 600 | 600 |
| Compression space(mm) | 380 | 380 | 600 |
| Clamping Method | Manual/automatic clamping | ||
| Round Sample Clamping Diameter(mm) | φ6-26 | φ13-40 | φ13-50 |
| Flat Sample Clamping thickness | 0-15mm | ||
| Max Clamping width of flat sample(mm) | 70 | 75 | 75 |
| Pressure Plate Size | φ160(or 204*204) | ||
| Max distance between bending fulcrum(mm) | 450 | 450 | 450 |
| Stretch space two legs distance(mm) | 450 | 450 | 550 |
| Oil pump motor power | 1.1Kw | 1.1Kw | 1.1Kw |
| Netweight | 1900kg | 2100kg | 2600kg |
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
