100KN Electronic Universal Testing Machine For Metal Material Mechanical Test

Large Image : 100KN Electronic Universal Testing Machine For Metal Material Mechanical Test

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA785

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	Export package
Delivery Time:	25-45working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

100KN Electronic Universal Testing Machine For Metal Material Mechanical Test

Description

Warranty:	1 Year	Place Of Origin:	China
Model Number:	GSA785	Usage:	Universal Testing Machine
Testing Accuracy:	0.5% FS	Max. Test Force:	100kN
Accuracy Of Indication:	≤0.5%	Power:	Electronic
High Light:	100KN Electronic Universal Testing Machine , Metal Material Electronic Universal Testing Machine , SGS Tensile Testing Machines

100KN Electronic Universal Testing Machine For Metal Material Mechanical Test

Application:

Suitable for non-metallic material such as rubber, plastic, ribbon, wire, rope, waterproofing membrane, wood-based panel, and small size, small load metal material mechanical test. The relative fixture can be complete tensile, compression, bending, shearing, tearing, peeling, static stiffness, ring rigidity, extraction force and other performance tests. They may add test methods or rules according to customers requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

Feature

1. crossbeam and worktable form a high rigidity frame.High precision ball driver under the servo motor control to adjust the space and test loading.
2. Adopt servo motor to drive the ball screw and ball screw drive the crossbeam up and down moving.This test equipment not only can finish the low-speed brittle materials test such as glass and carbon rods but also can finish super-deformation plastic material test.
3. Simple connection.Has variety of clamping way and thousands of test fixtures.Clamping way”leveraged type;screw tight type;hydraulic type;pneumatic type;eccentric wheel type;latch type;self-locking type;compression type and so on.
4. Large test space,convent to add other test decive such as environment box,high temperature furnace and large deformation extensometer.Also can configure miltiple load cell to cover more range.
5. No need to add hydraulic oil,environmental protection and pollution-free green equipment.

Specification

Model	GSA785	GSA786	GSA787	GSA788	GSA789	GSA790
Max. Test force	10kN	20kN	50kN	100kN	200kN	300kN
Testing accuracy	0.5% FS		0.5% FS		0.5% FS
Accuracy of indication	≤0.5％		≤0.5％		≤0.5％
Measurement range	1％－100％FS		1％－100％FS		1％－100％FS
Extensometer testing range	1%--100%FS		1%--100%FS		1%--100%FS
Accuracy of extensometer	≤0.5％		≤0.5％		≤0.5％
Force control rate range	0.005-0.5FS/S		0.005-0.5FS/S		0.005-0.5FS/S
Force control rate accuracy	Rate＜0.05%FS/s,≤±1%, Rate≥0.05%FS/s,≤±0.5%；
Strain control rate range	0.005-0.5FS/S		0.005-0.5FS/S		0.005-0.5FS/S
Strain control rate accuracy	Rate＜0.05%FS/s,≤±1%, Rate≥0.05%FS/s,≤±0.5%；
Displacement Accuracy	≤0.5％
Moving range of Crossbeam	800mm		900mm		900mm
Speed of Crossbeam	0.001～500		0.001～500		0.001～200
Effective test space	370		475		500
Max.stretching space	800mm		700mm		600mm
Max.compression space	1100mm		1100mm		1000mm
Clamping range of circular specimens	Φ4～Φ20mm		Φ4～Φ20mm		Φ4～Φ26mm
Clamping thickness of plate specimens	0～20mm		0～20mm		0~26mm

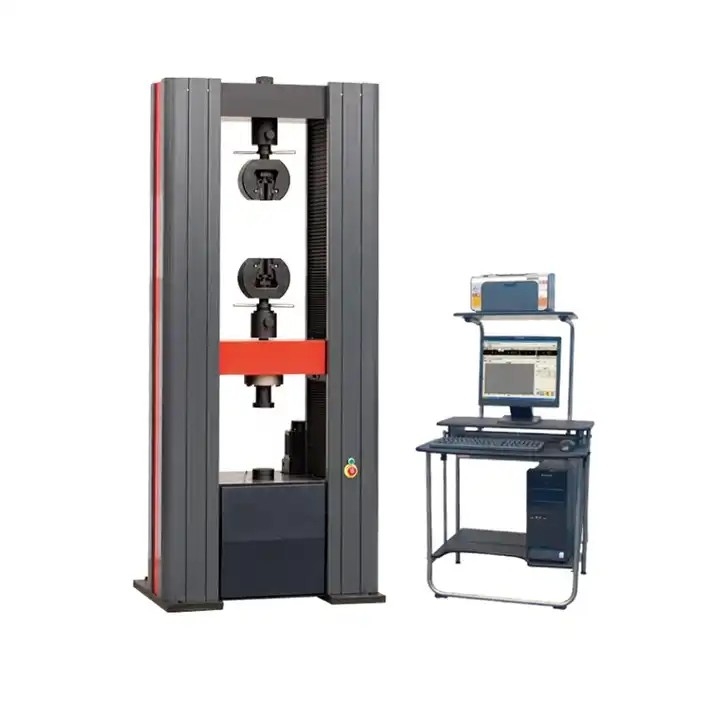

100KN Electronic Universal Testing Machine For Metal Material Mechanical Test 0

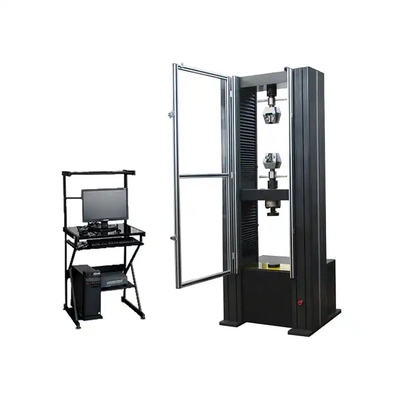

100KN Electronic Universal Testing Machine For Metal Material Mechanical Test 1

FAQ

Q: How long is the delivery time?
A: 25-45working days after received deposit

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video. For so many years’experience,our instruments works well during warranty period.
